Process Mapper

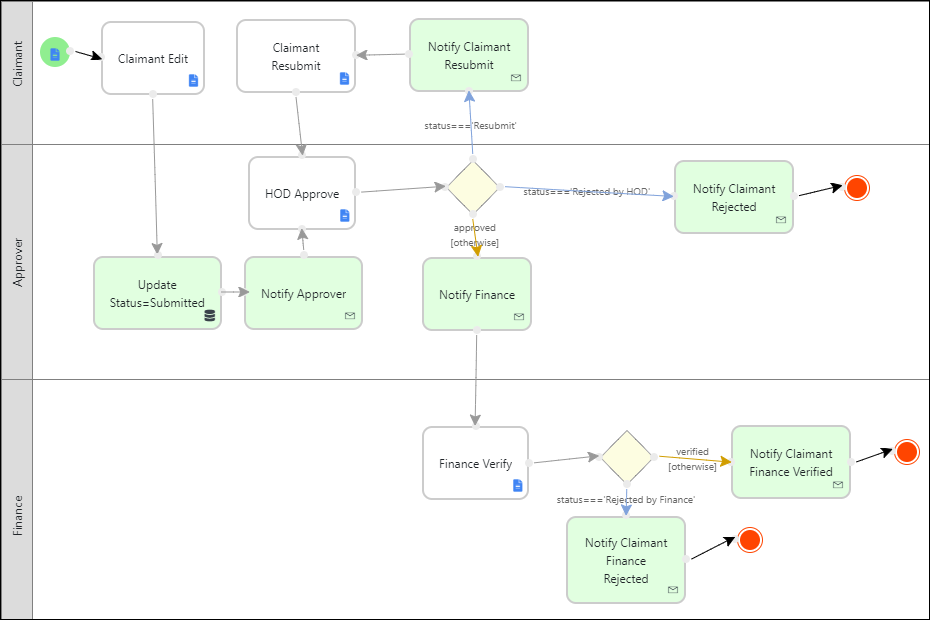

The Process Mapper simplifies the mapping process by offering an intuitive visual representation of workflows. It lets users map various process components, such as participants, activities, tools, and routes, directly within the process design view.

How does it work?

To access and utilize the Process Mapper effectively in Joget DX, follow these steps using the example of the built-in Expenses Claims app:

1. Start the Joget Server and open the App Center.
2. Log in as admin and click the pencil icon on the Expenses Claim to open the Design App.

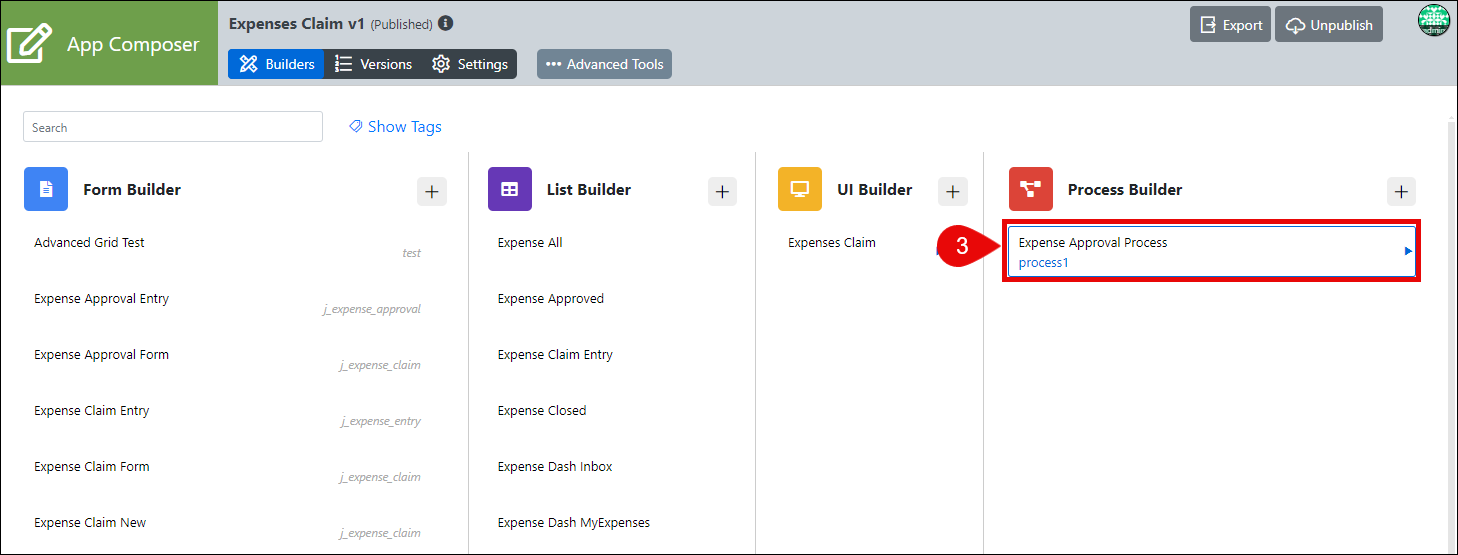

3.  In the App Composer, select a process from the Process Builder.

4. Click a Route in the process diagram, then click the Mapping tab.

5. Alternatively, you can click on List View, click Routes, select any route, and then click Mapping.



Process mapper properties

Process Mapper Properties offer various configurations to enhance workflow design:

• Process Name: Click the Process Name to reveal the Process Start White List in the Map Participants to Users section.
• Participant Name: Click Participant Name displays Mapping Options for participants in the Map Participants to Users section.
• Start: Click the Start node to configure the Run Process settings in the Map Activities to Forms section.
• Activity: Click the Activity node that shows Mapping Options in the Map Activities to Forms section.
• Tool: Click the Tool node to display Plugin Options in the Map Tools to Plugins section.
• Route: Click Route node shows Plugin Options in the Map Routes to Plugins section.
• Display All Info: Hovering over this option provides a list of information types as shown below:
  • Participants: Displays Participant Type and Value of each Participants and the Process Name (as the Process White List)
  • Activity: Displays the Form Name mapped to each activity nodes (and the Start node)
  • Tool: Displays the Plugin Name and Plugin Version of each Tool node.
  • Route: Displays the Plugin Name and Plugin Version of each Route node.
  • Hide All: Hides all info
• Advanced Tools: Includes additional features like the i18n Internationalization tab in the Builder Advanced Tools for localization.

Deleting mapped plugins on the process mapper

To remove existing mapped plugins:

• Click the node representing the mapped element (participant, activity, tool, or route).

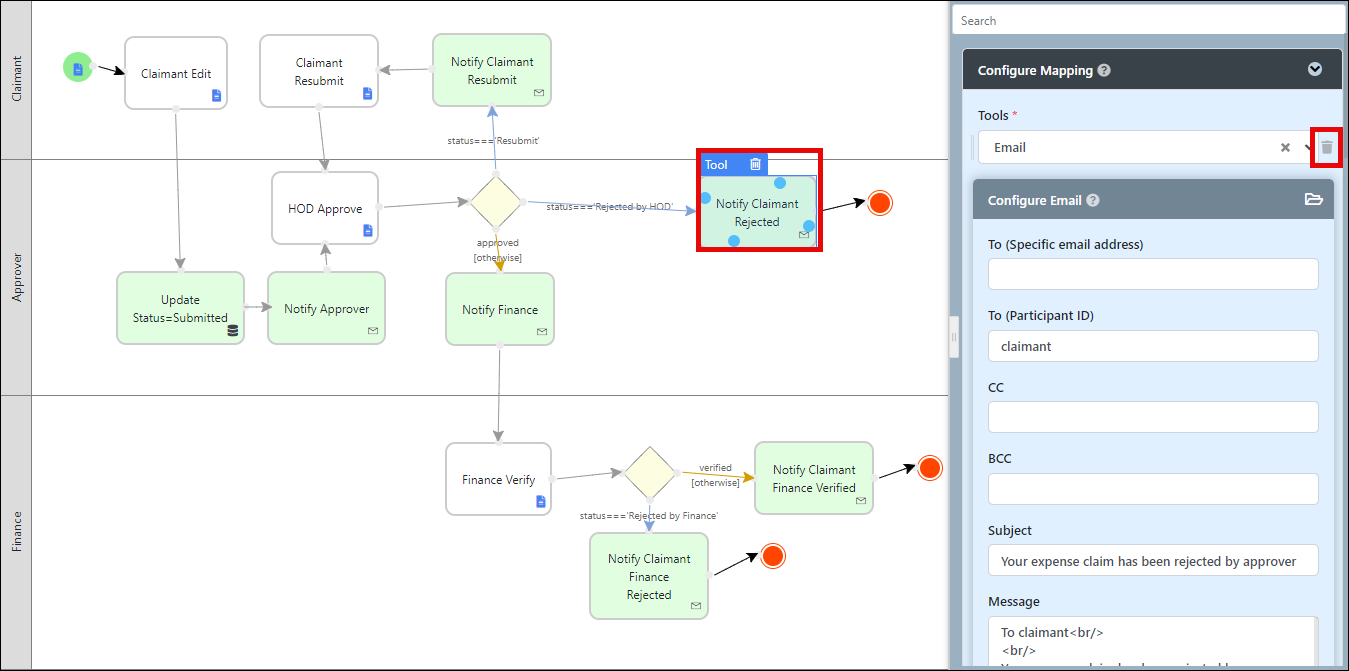

• Go to the mapping section and click the Trashcan icon to delete the mapping.
