Integrate a Process Into a UI

After defining and mapping the process components, you can integrate the process into a UI. To integrate the process into the UI, follow the steps below:

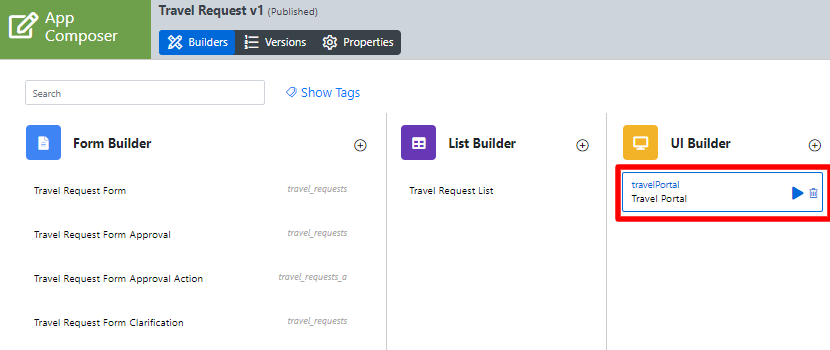

  1. Access the App Composer page and click existing UI to launch the UI Builder.

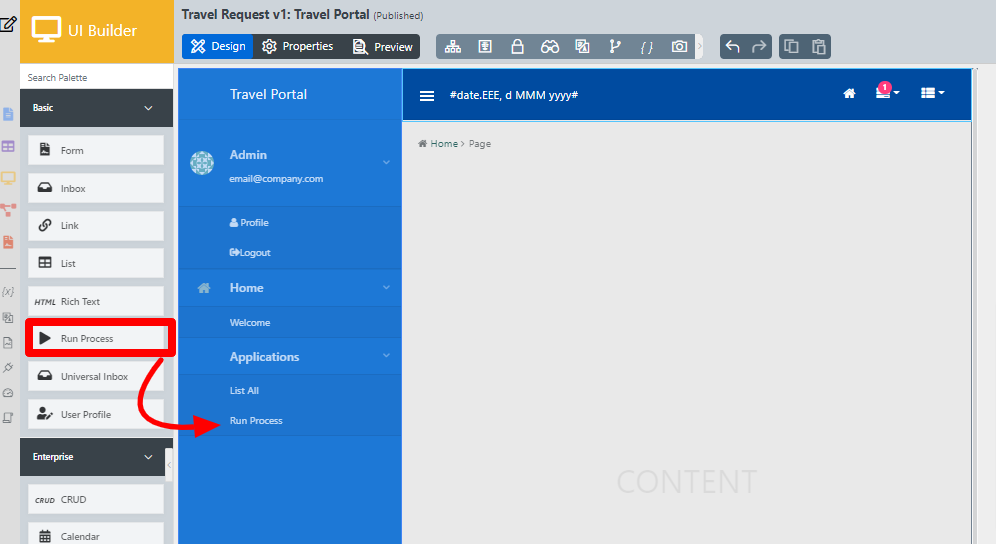

  2. Drag and drop a Run Process element into the menu on the UI Builder. The Run Process element allows the user to start a process from the user view.

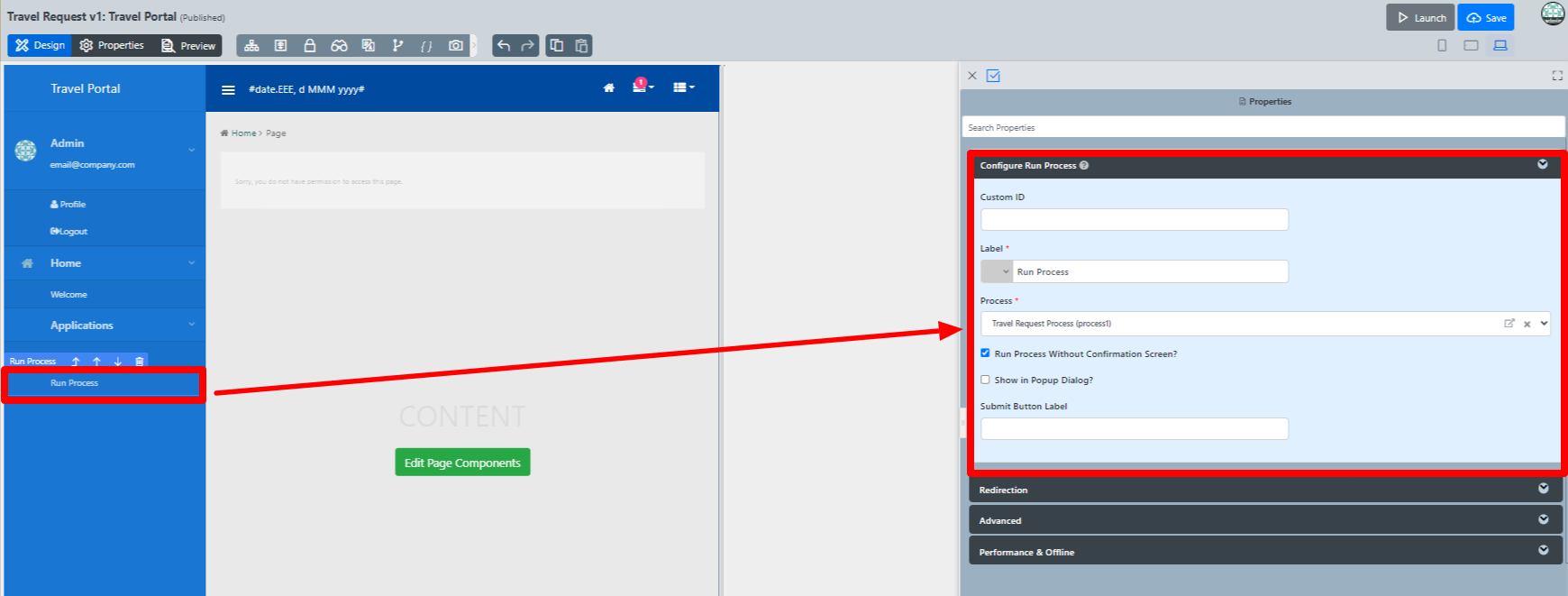

  3. Select the Run Process element and choose its running process. For this example, select the Travel Request process.

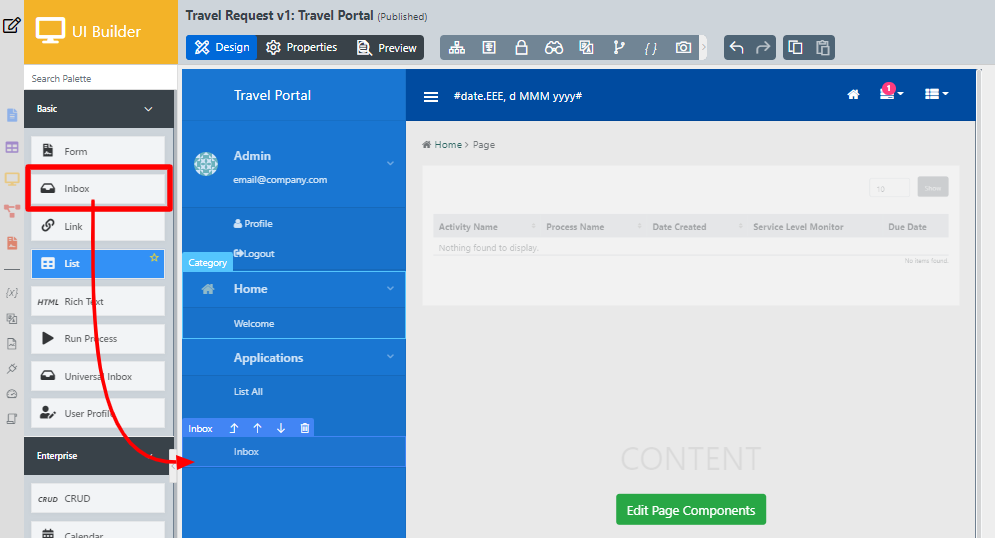

  4. Drag and drop an Inbox element into a menu. The Inbox element provides users with an inbox to manage their assigned workflow tasks.
  5.  Click Save on the top right corner to save the UI.

Now, you can publish the app, run the process, and perform assigned tasks.
