Joget on Google Cloud Platform

Google Cloud Platform (GCP) offers a powerful and scalable infrastructure for running virtual machines with Google Compute Engine. Joget, as an open-source platform, complements GCP by enabling the rapid development of enterprise web applications for both cloud and mobile environments.

Deploying Joget on a Linux VM using Google compute engine

Follow the steps to deploy Joget on a Linux VM using Compute Engine; these steps can be adapted for other operating systems, such as Windows or macOS.

Step 1: Signup for Google Cloud Platform

Access the Google Cloud sign up page and Follow the instructions to create your account.

Step 2: Install the Cloud SDK

Download and Install the Cloud SDK.

Step 3: Create a new Linux VM

Once the Cloud SDK is installed and verified to be working, create a new Linux VM using the following commands:

• For Linux:

  export INSTANCE_NAME=joget8
  export IMAGE_ID=ubuntu-2204-jammy-v20240628
  export IMAGE_PROJECT=ubuntu-os-cloud
  export MACHINE_TYPE=n1-standard-1
  export JOGET_VERSION=8.1.2
  export MYSQL_VERSION=8.4
  export MYSQL_PASSWORD=root

  echo "== Create VM instance $INSTANCE_NAME for $IMAGE_ID on $MACHINE_TYPE =="
  gcloud compute instances create $INSTANCE_NAME --image $IMAGE_ID --image-project $IMAGE_PROJECT --machine-type=$MACHINE_TYPE

• For Windows:

  set INSTANCE_NAME=joget8
  set IMAGE_ID=ubuntu-2204-jammy-v20240628
  set IMAGE_PROJECT=ubuntu-os-cloud
  set MACHINE_TYPE=n1-standard-1
  set JOGET_VERSION=8.1.2
  set MYSQL_VERSION=8.4
  set MYSQL_PASSWORD=root

  echo "== Create VM instance %INSTANCE_NAME% for %IMAGE_ID% on %MACHINE_TYPE% =="
  gcloud compute instances create %INSTANCE_NAME% --image %IMAGE_ID% --image-project %IMAGE_PROJECT% --machine-type=%MACHINE_TYPE%

If you are using a low-memory machine type (e.g. f1-micro), then you will need to add swap space:

• For Linux:

  echo "== Add swap file (required for low memory machine types eg f1-micro) =="
  gcloud compute ssh $INSTANCE_NAME -- "\
  sudo fallocate -l 1G /swapfile;\
  sudo chmod 600 /swapfile;\
  sudo mkswap /swapfile;\
  sudo swapon /swapfile;\
  sudo swapon -s"

• For Windows:


  echo "== Add swap file (required for low memory machine types eg f1-micro) =="
  gcloud compute ssh %INSTANCE_NAME% --command="sudo fallocate -l 1G /swapfile; sudo chmod 600 /swapfile; sudo mkswap /swapfile; sudo swapon /swapfile; sudo swapon -s;"



Step 4: Deploy Joget in the VM

Run the following commands to download and install Joget Enterprise Edition:

• For Linux:


  echo "== Deploy Joget =="
  gcloud compute ssh $INSTANCE_NAME -- "\
      echo === Install Java ===;\
      sudo apt-get update;\
      sudo apt-get install -y openjdk-11-jdk-headless;\
      echo === Install MySQL ===;\
      sudo debconf-set-selections <<< \"mysql-server-$MYSQL_VERSION mysql-server/root_password password $MYSQL_PASSWORD\";\
      sudo debconf-set-selections <<< \"mysql-server-$MYSQL_VERSION mysql-server/root_password_again password $MYSQL_PASSWORD\";\
      sudo apt-get -y install mysql-server-$MYSQL_VERSION;\
      sudo -E apt-get -q -y install mysql-server;\
      echo === Download Joget $JOGET_VERSION ===;\
      cd ~;\
      wget https://download.joget.org/enterprise/joget-enterprise-linux-$JOGET_VERSION.tar.gz;\
      echo === Extract Bundle ===;\
      tar xvfz joget-enterprise-linux-$JOGET_VERSION.tar.gz;\
      cd joget-enterprise-linux-$JOGET_VERSION;\
      echo === Setup Datasource ===;\
      apache-ant-1.7.1/bin/ant setup -Dprofile.name=default -Ddb.name=jwdb -Ddb.host=localhost -Ddb.port=3306 -Ddb.user=root -Ddb.password=$MYSQL_PASSWORD;\
      echo === Reduce JAVA VM Memory Allocation ===;\
      sed -i -e 's/768/256/g' tomcat.sh;\
      echo === Clean Bundle ===;\
      cd ..;\
      rm -r joget-enterprise-linux-$JOGET_VERSION.tar.gz;\
      echo === Start Joget $JOGET_VERSION ===;\
      cd joget-enterprise-linux-$JOGET_VERSION;\
      ./tomcat.sh start"

• For Windows:


  echo "== Deploy Joget =="
  gcloud compute ssh %INSTANCE_NAME% --command="echo === Install Java ===;sudo apt-get install -y openjdk-11-jdk-headless;    echo === Install MySQL ===;    sudo debconf-set-selections ^<^<^< \"mysql-server-%MYSQL_VERSION% mysql-server/root_password password %MYSQL_PASSWORD%\";    sudo debconf-set-selections ^<^<^< \"mysql-server-%MYSQL_VERSION% mysql-server/root_password_again password %MYSQL_PASSWORD%\";    sudo apt-get -y install mysql-server-%MYSQL_VERSION%;    sudo -E apt-get -q -y install mysql-server;    echo === Download Joget %JOGET_VERSION% ===;    cd ~;    wget https://dev.joget.org/downloads/enterprise/joget-enterprise-linux-%JOGET_VERSION%.tar.gz;    echo === Extract Bundle ===;    tar xvfz joget-enterprise-linux-%JOGET_VERSION%.tar.gz;    cd joget-enterprise-linux-%JOGET_VERSION%;    echo === Setup Datasource ===;    apache-ant-1.7.1/bin/ant setup -Dprofile.name=default -Ddb.name=jwdb -Ddb.host=localhost -Ddb.port=3306 -Ddb.user=root -Ddb.password=%MYSQL_PASSWORD%;    echo === Reduce JAVA VM Memory Allocation ===;    sed -i -e 's/768/256/g' tomcat.sh;    echo === Clean Bundle ===;    cd ..;    rm -r joget-enterprise-linux-%JOGET_VERSION%.tar.gz;    echo === Start Joget %JOGET_VERSION% ===;    cd joget-enterprise-linux-%JOGET_VERSION%;    ./tomcat.sh start"



Deployment may take several minutes (depending on the type of VM) so be patient.

Monitor the logs using:

• For Linux:

echo "== Tail Logs =="
gcloud compute ssh $INSTANCE_NAME -- "tail -f ~/joget-enterprise-linux-*/apache-tomcat-*/logs/catalina.out"

• For Windows:

echo "== Tail Logs =="
gcloud compute ssh %INSTANCE_NAME% --command="tail -f ~/joget-enterprise-linux-*/apache-tomcat-*/logs/catalina.out"

The deployment is complete once you see the following in the logs:

12-Mar-2020 07:24:02.199 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in XXXXX ms

Press CTRL-C to stop viewing the logs.

Step 5: Add firewall rule for default Apache Tomcat Port 8080

The default installation bundle runs on Apache Tomcat port 8080. Add a firewall rule to allow traffic to access the default Apache Tomcat port 8080:

echo "== Add firewall rule for port 8080 =="
gcloud compute firewall-rules create tomcat-8080 --description "Incoming http 8080 allowed." --allow tcp:8080 --format json

For further details on adding firewall rules, see Google Cloud Networking Documentation.

Step 6: Access Joget installation

Check the external IP of the VM instance by running the command:

echo "== Display instance and external IP =="
gcloud compute instances list

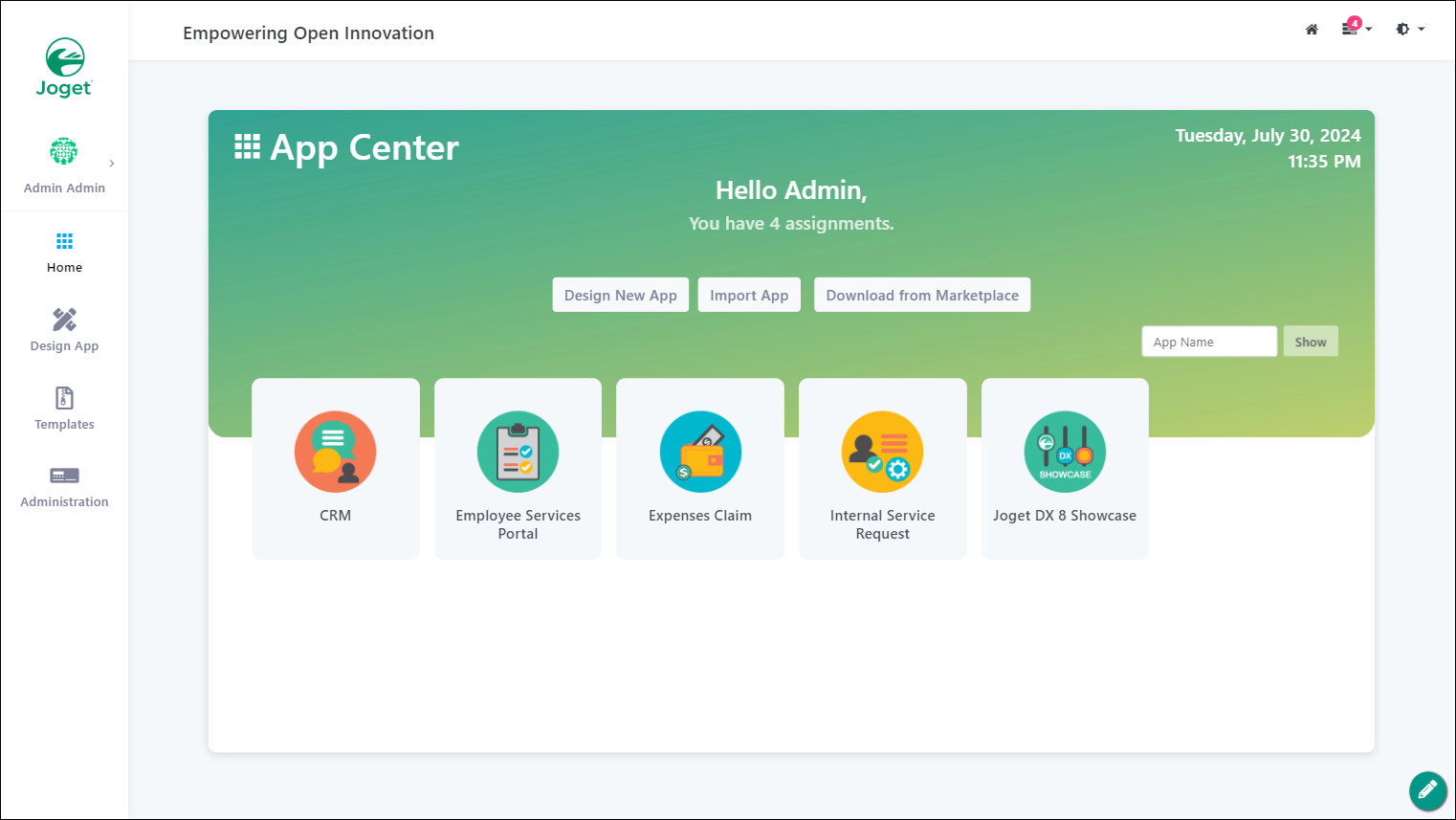

Browse your Joget installation at http://VM_EXTERNAL_IP:8080/jw, and get started with Apps and the App Center.
