How to develop a Bean Shell Hash Variable

In this tutorial, we will follow the guidelines for developing a plugin to develop our Bean Shell Hash Variable plugin.

1. What is the problem?

The hash variable is convenient to use, but sometimes, we want to do a condition check before displaying a value. The hash variable does not provide this ability.

2. How to solve the problem?

By looking at the Plugin Types currently supported by Joget Workflow, we can develop a Hash Variable Plugin to allow us to write our scripting for condition checking. Several Bean Shell plugins are provided as the default plugin for several plugin types. We can also develop one for the Hash Variable plugin.

3. What is the input needed for your plugin?

The Hash Variable plugin does not provide an interface for the user to configure, but to develop a Bean Shell Hash Variable plugin, we need somewhere to put our Bean Shell script. We can reuse the App Variable to store our script. So, the Hash Variable syntax will be a prefix with the environment variable key.

E.g. #beanshell.EnvironmentVariableKey#

But this may not be enough. We may also need some other way to pass in some variables. We can consider using a URL query parameters syntax to pass in our variables because it is easier to parse later.

E.g. #beanshell.EnvironmentVariableKey[name=Joget&email=info@joget.org&message={form.sample.message?url}]#

4. What is the output and expected outcome of your plugin?

What do we expect from this Bean Shell Hash variable plugin? The Bean Shell Hash Variable plugin is for admin/developer users to use when building/developing an app. Once used, the Hash Variable will be replaced by the output return from the Bean Shell interpreter so that the admin user can do a condition check before displaying something to a normal user.

E.g., Display a welcome message for logged-in users but display nothing when the user is anonymous.

5. Are there any resources/API that can be reused?

To develop the Bean Shell Hash Variable plugin, we can refer to the source code of all the Hash Variable plugins and Bean Shell plugins. We can especially refer to the Environment Variable Hash Variable plugin for instructions on retrieving an environment variable using a variable key. We can also refer to the Bean Shell Tool or Bean Shell Form Binder plugin for instructions on executing the script with the Bean Shell interpreter.

We can use StringUtil's getUrlParams method to help us parse parameters passed in using URL query parameters syntax.

6. Prepare your development environment

We must always have our Joget Workflow Source Code ready and built following this guideline.

The following tutorial is prepared using a MacBook Pro and Joget Source Code version 8.0—Snapshot. For other platform commands, please refer to the Guideline for Developing a Plugin article.

Let's say our folder directory is as follows.

- Home
  - joget
    - plugins
    - jw-community

The "plugins" directory is where we will create and store all our plugins, and the "jw-community" directory is where the Joget Workflow Source code is stored.

cd joget/plugins/
~/joget/jw-community/wflow-plugin-archetype/create-plugin.sh org.joget.tutorial beanshell_hash_variable 8.0-Snapshot

Run the following command to create a maven project in the "plugins" directory.

Then, the shell script will ask us to key in a version number for the plugin and ask us for a confirmation before it generates the maven project.

Define value for property 'version':  1.0-SNAPSHOT: : 8.0-Snapshot
[INFO] Using property: package = org.joget.tutorial
Confirm properties configuration:
groupId: org.joget.tutorial
artifactId: beanshell_hash_variable
version: 5.0.0
package: org.joget.tutorial
Y: : y

We should see the "BUILD SUCCESS" message in our terminal and a "beanshell_hash_variable" folder created in the "plugins" folder.

Open the maven project with your favorite IDE. We will be using NetBeans.

7. code it!

a. Extending the abstract class of a plugin type

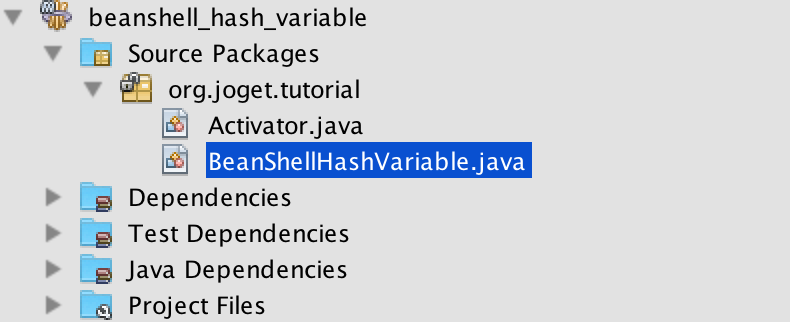

Create a "BeanShellHashVariable" class under "org.joget.tutorial" package.

Then, based on Hash Variable Plugin document, we will have to extend org.joget.apps.app.model.DefaultHashVariablePlugin abstract class.

b. Implement all the abstract methods

Let us implement all the abstract methods. We will be using AppPluginUtil.getMessage method to support i18n and using constant variable MESSAGE_PATH for message resource bundle directory.

Implementation of all basic abstract methods

package org.joget.tutorial;

import org.joget.apps.app.model.DefaultHashVariablePlugin;
import org.joget.apps.app.service.AppPluginUtil;

public class BeanShellHashVariable extends DefaultHashVariablePlugin {

    private final static String MESSAGE_PATH = "messages/BeanShellHashVariable";

    public String getName() {
        return "BeanShellHashVariable";
    }

    public String getVersion() {
        return "5.0.0";
    }

    public String getClassName() {
        return getClass().getName();
    }

    public String getLabel() {
        //support i18n
        return AppPluginUtil.getMessage("org.joget.tutorial.BeanShellHashVariable.pluginLabel", getClassName(), MESSAGE_PATH);
    }

    public String getDescription() {
        //support i18n
        return AppPluginUtil.getMessage("org.joget.tutorial.BeanShellHashVariable.pluginDesc", getClassName(), MESSAGE_PATH);
    }

    public String getPropertyOptions() {
        //Hash variable plugin do not support property options
        return "";
    }

    public String getPrefix() {
        return "beanshell";
    }

    public String processHashVariable(String variableKey) {
        throw new UnsupportedOperationException("Not supported yet.");
    }
}

Now, let's focus on the main method of our Hash Variable plugin which is processHashVariable. We will refer to the source code of Environment Variable Hash Variable plugin on how to retrieve the Environment variable. Then, refer to the source code of Bean Shell Form Binder on how to execute a bean shell script.

public String processHashVariable(String variableKey) {
    try {
        String environmentVariableKey = variableKey;

        //first check and retrieve parameters passed in with URL query parameters syntax wrapped in square bracket []
        String queryParams = null;
        if (variableKey.contains("[") && variableKey.contains("]")) {
            queryParams = variableKey.substring(variableKey.indexOf("[") + 1, variableKey.indexOf("]"));
            environmentVariableKey = variableKey.substring(0, variableKey.indexOf("["));
        }

        //Parse the query parameters to a map
        Map<String, String[]> parameters = null;
        if (queryParams != null && !queryParams.isEmpty()) {
            parameters = StringUtil.getUrlParams(queryParams);

            //put all parameters to plugin properties
            getProperties().putAll(parameters);
        }

        //Retrieve the environment variable based on environmentVariableKey
        AppDefinition appDef = (AppDefinition) getProperty("appDefinition");
        if (appDef != null) {
            ApplicationContext appContext = AppUtil.getApplicationContext();
            EnvironmentVariableDao environmentVariableDao = (EnvironmentVariableDao) appContext.getBean("environmentVariableDao");
            EnvironmentVariable env = environmentVariableDao.loadById(environmentVariableKey, appDef);
            if (env != null) {
                String script = env.getValue();
                //execute the script with all plugin properties
                return executeScript(script, getProperties());
            } else {
                //environment variable not found, return empty value
                return "";
            }
        }
    } catch (Exception e) {
        //log the exception using LogUtil
        LogUtil.error(getClassName(), e, "#beanshell."+variableKey+"# fail to parse.");
    }

    //return null to by pass the replacing
    return null;
}

protected String executeScript(String script, Map properties) throws Exception {
    Interpreter interpreter = new Interpreter();
    interpreter.setClassLoader(getClass().getClassLoader());
    for (Object key : properties.keySet()) {
        interpreter.set(key.toString(), properties.get(key));
    }
    LogUtil.debug(getClass().getName(), "Executing script " + script);
    return (String) interpreter.eval(script);
}

c. Manage the dependency libraries of your plugin

Our plugin class cannot resolve "bsh.Interpreter". So, we must add bean shell library to our POM file.

<!-- Change plugin specific dependencies here -->
<dependency>
    <groupId>org.beanshell</groupId>
    <artifactId>bsh</artifactId>
    <version>2.0b4</version>
</dependency>
<!-- End change plugin specific dependencies here -->

d. Make your plugin internationalization (i18n) ready

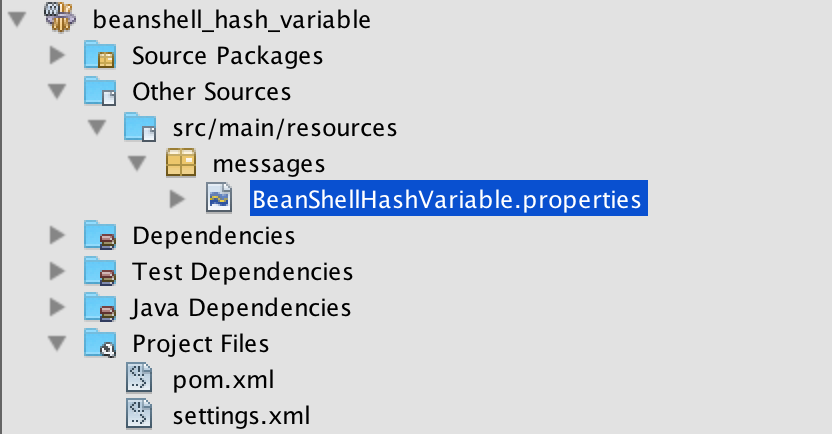

We are using the AppPluginUtil.getMessage method to display the i18n value for our getLabel and getDescription method. We will have to create a message resource bundle properties file for it. Create directory resources/messages under beanshell_hash_variable/src/main the directory. Then, create a BeanShellHashVariable.properties file in the folder.

In our properties file, we will need to add the key we have used.

org.joget.tutorial.BeanShellHashVariable.pluginLabel=Bean Shell Hash Variable
org.joget.tutorial.BeanShellHashVariable.pluginDesc=Using environment variable to execute bean shell script.

e. Register your plugin to the Felix Framework

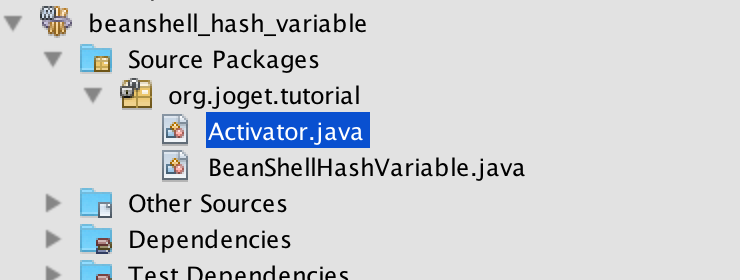

We will have to register our plugin class in the Activator class to tell the Felix Framework that this is a plugin.

public void start(BundleContext context) {
    registrationList = new ArrayList<ServiceRegistration>();

    //Register plugin here
    registrationList.add(context.registerService(BeanShellHashVariable.class.getName(), new BeanShellHashVariable(), null));
}

f. Build it and test

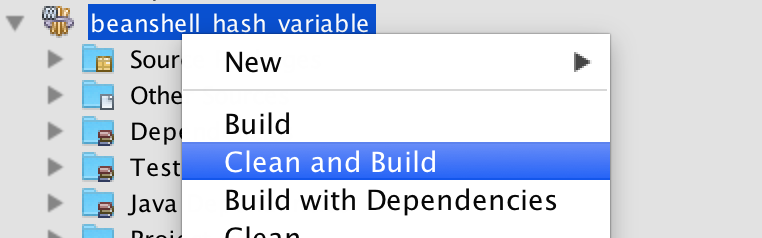

Let's build our plugin. Once the building process is done, we will find that a beanshell_hash_variable-5.0.0.jar file is created under beanshell_hash_variable/target directory.

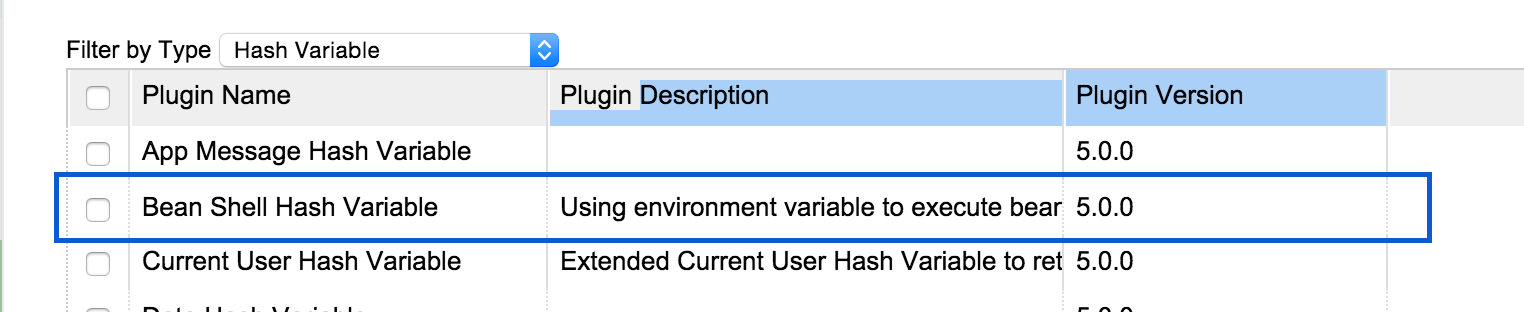

Then, let's upload the plugin jar to Manage Plugins. After uploading the jar file, double-check that the plugin is uploaded and activated correctly.

Now, let's test our plugin.

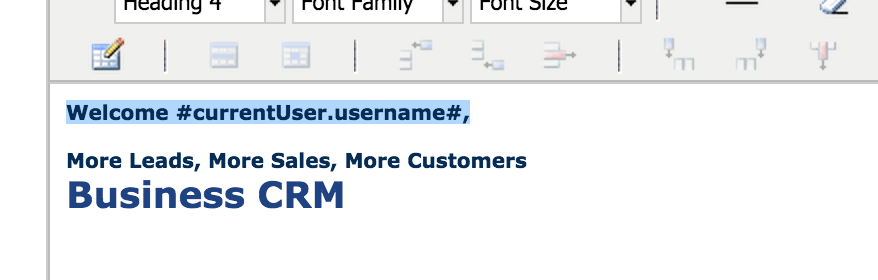

Let's assume that we have an HTML menu page in a user view that wants to display the following line to logged-in users: "Welcome # currentUser, username #." Normally, we would use "Welcome #currentUser,username#," to display a welcome message.

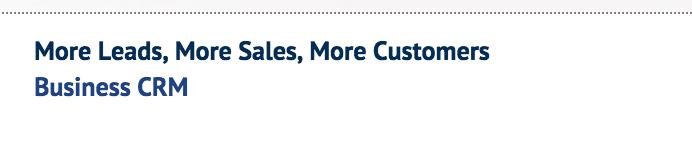

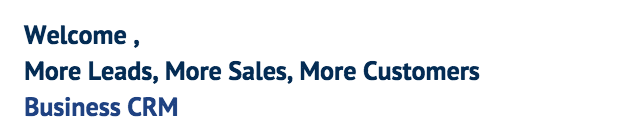

However, in this use case, there is a problem: it shows "Welcome " without a username when the user is anonymous.

Now, change the whole message to our Bean Shell Hash Variable and create an environment variable to put our script.

Change:

Welcome #currentUser.username#,

to the following. We will need to pass the current user's username as one of our parameters and do not forget to escape it as url.

#beanshell.welcome[username={currentUser.username?url}]?html#

Then, we can create an environment variable with ID "welcome" and use the following script. As we are using getUrlParams method from StringUtil to parse the parameters, all value from parameters are String array.

//all parameters passed in from Beanshell Hash Variable will converted to String array
if (username != null && username.length == 1 && !username[0].isEmpty()) {
    return "Welcome " + username[0] + ",";
} else {
    return "";
}

Let go back to our HTML menu page to see the result.

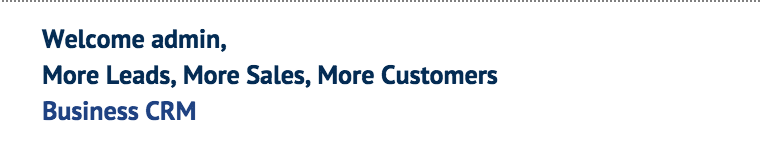

When user is logged in, it shows the message correctly.
