DX 8 Angle Theme

The DX 8 Angle Theme is a dynamic and versatile theme that offers extensive customization options to enhance the user interface's aesthetic and functionality.

Configure DX 8 angle

To set up a theme DX 8 Angle, go to the Theme field in UI settings > Configure Layout and select DX 8 Angle.

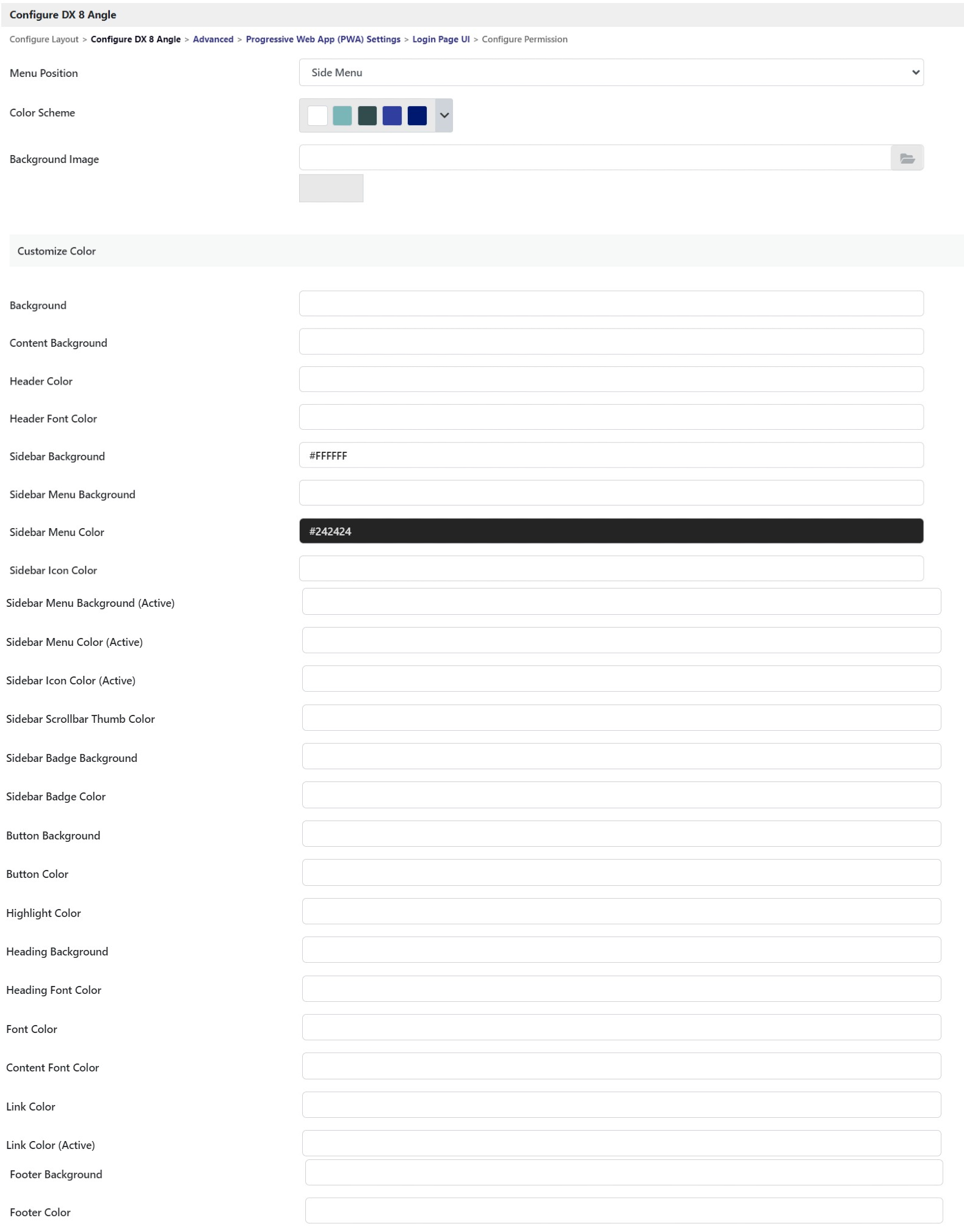

When you select DX 8 Angle, you will see the following properties available for configuration:

• Menu Position:
  Determines the position of the menu
  • Side Menu
  • Minimized Side Menu
  • Horizontal Menu below Header
  • Horizontal Menu inline with Header
  • No Menu

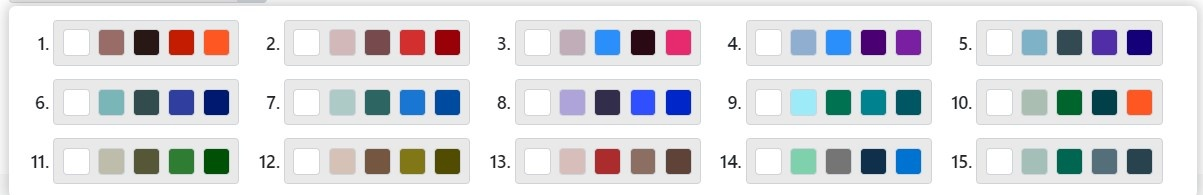

• Color Scheme: Extensive color configuration options for every UI element, from background to buttons and links, allow preset and custom color choices.

• Background Image: Upload a custom background image for a personalized look.
• Background:
  Color Scheme-Background.
  You can choose from the preset colors or custom colors. If you choose custom colors, you can define them manually or through the color picker.
• Content Background:
  Color Scheme-Content Background.
  You can choose from the preset colors or custom colors. If you choose custom colors, you can define them manually or through the color picker.
• Header Color:
  Color Scheme-Header Color.
  You can choose from the preset colors or custom colors. If you choose custom colors, you can define them manually or through the color picker.
• Header Font Color:
  Color Scheme-Header Font Color.
  You can choose from the preset colors or custom colors. If you choose custom colors, you can define them manually or through the color picker.
• Sidebar Background:
  Color Scheme-Sidebar Background.
  You can choose from the preset colors or custom colors. If you choose custom colors, you can define them manually or through the color picker.
• Sidebar Menu Background:
  Color Scheme-Sidebar Menu Background.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Menu Color:
  Color Scheme-Sidebar Menu Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Icon Color:
  Color Scheme-Sidebar Icon Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Menu Background (Active):
  Color Scheme-Sidebar Menu Background (Active).
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Menu Color (Active):
  Color Scheme-Sidebar Menu Color (Active).
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Icon Color (Active):
  Color Scheme-Sidebar Icon Color (Active).
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Scrollbar Thumb Color:
  Color Scheme-Sidebar Scrollbar Thumb.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Badge Background:
  Color Scheme-Sidebar Badge Background.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Sidebar Badge Color:
  Color Scheme-Sidebar Badge Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Button Background:
  Color Scheme-Button Background.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Button Color:
  Color Scheme-Button Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Highlight Color:
  Color Scheme-Highlight Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Highlight Background:
  Color Scheme-Highlight Background.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Heading Font Color:
  Color Scheme-Heading Font Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Font Color:
  Color Scheme-Font Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Content Font Color:
  Color Scheme-Content Font Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Link Color:
  Color Scheme-Link Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Link Color (Active):
  Color Scheme-Link Color (Active).
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Footer Background:
  Color Scheme-Footer Background.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.
• Footer Color:
  Color Scheme-Footer Color.
  You can choose from the preset colors or custom colors. When you choose custom colors, you can define the color manually or through the color picker.

Advanced

The advanced settings offer extensive customization for the DX 8 Angle Theme. You can define URLs for the favicon and logo, disable user profile photos, and configure the inbox for assignments. Additional features include enabling font size control, dark theme, responsive switch for mobile devices, and adding custom CSS or JavaScript. You can also insert HTML for subheaders, subfooters, and a home banner and manage user menu shortcuts.

Fields to Configure:

• Favicon URL: Define the path to custom Favicon URL.
• Logo URL: Define the path to custom Logo URL.
• Disable Profile: Option to remove the user's profile photo display.
• User Image:
  • Hide
  • Gravatar Service
  • Using Hash Variable
    • Define Hash Variable To Retrieve User Image URL
    • #form.user_profile.image[{currentUser.id}]#
• Inbox: Manage how assignments are displayed.
  • No Inbox
  • Show all assignments
  • Show current App assignment only
• Home Icon URL: Home Icon URL address.
• Shortcut Link Label: Name for the shortcut link.
• Shortcut: Defines links to be parked under the Shortcut menu.
• User Menu Shortcut: Defines links to be parked under the User menu.
• Enable Font Size Control?: Check this to enable the ability to change the font size on UI runtime.
• Dark Theme: Check this to enable the dark theme.




• Compact theme: Provide features like Gmail density settings like Compact, Default & Comfortable. This setting will adjust the white space, padding & margin.

• Enable Responsive Switch in Mobile Device?: When checked, the Switch to the Desktop version link will be shown on the mobile device.
• Remove Auto Title from Process/Assignment form?: Process title and activity name will be removed from the assignment form when checked.
• Home Banner:  Insert custom HTML for Home Banner
• Custom CSS: Add custom CSS to style the UI.
• Custom JavaScript: Add custom Javascript for the theme.
• Sub header: Insert HTML for a subheader.
• Sub footer: Insert HTML for a subfooter.
• Disable Help Guide Feature?: Click to hide the help guide feature.

Progressive web app (PWA) settings

The PWA settings ensure your application supports offline usage and push notifications. You can enable or disable PWA support and web push notifications and specify additional URLs to cache for offline functionality. These settings enhance the user experience by making the app more robust and accessible, even without an internet connection.

Fields to Configure:

• Disable Progressive Web App (PWA) Support:
  Click the checkbox to disable PWA.
  Joget DX apps automatically enable Progressive Web Apps (PWA) features in this theme so that all apps are PWA baseline compliant without requiring additional steps. These features include adding to the home screen, offline support, and push notifications.
• Disable Web Push Notifications: Click to disable web push notifications in this user view.
• Additional URLs to Cache: Enter paths relative to the context root.

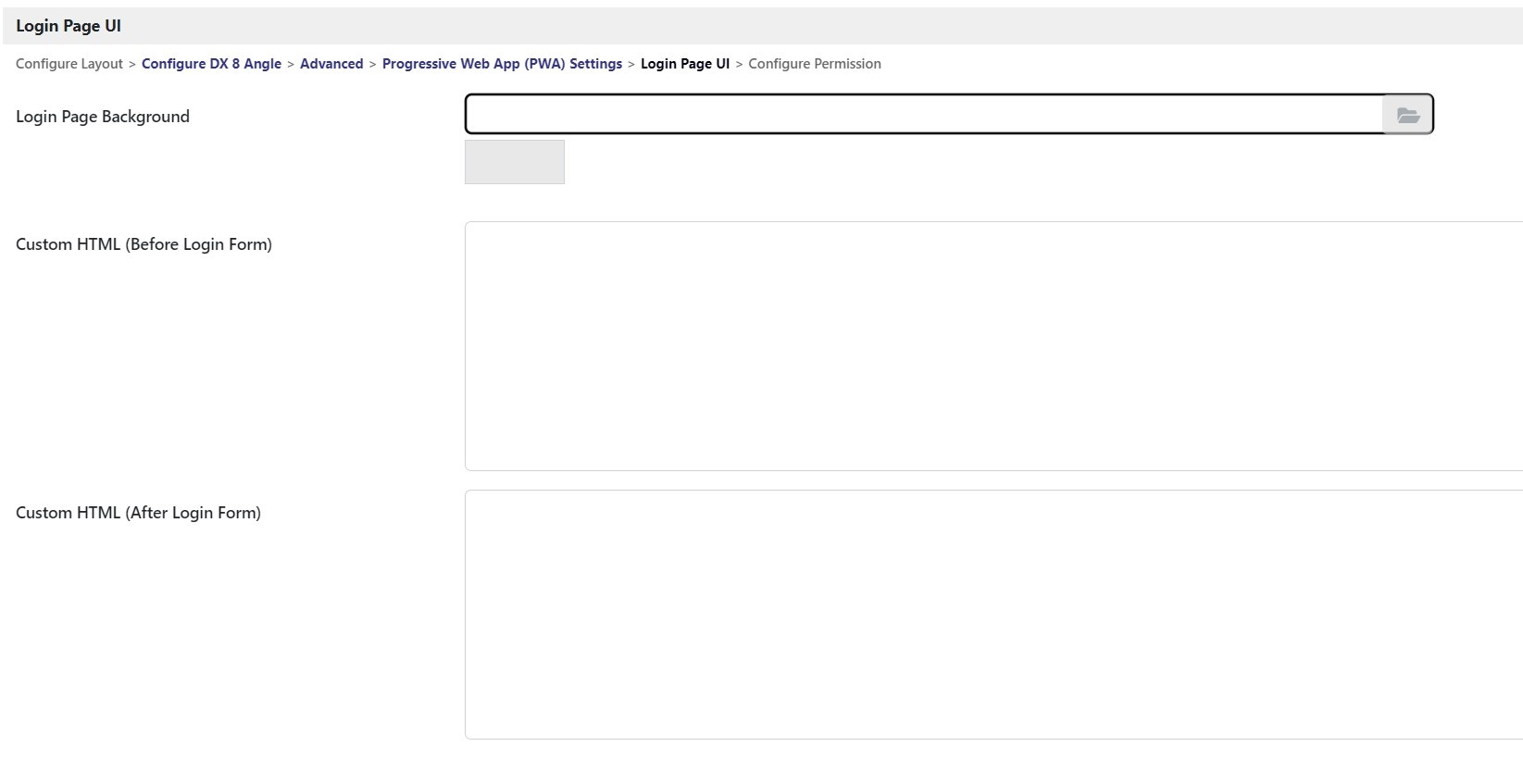

Login page UI

The Login Page UI settings allow you to customize your application's login page. You can upload a background image and add custom HTML content before and after the login form. These configurations help create a more engaging and personalized login experience for users and ensure that the login page aligns with your application's branding and design.

Fields to Configure:

• Login Page Background: Upload Login Page Background.
• Custom HTML (Before Login Form): Add custom HTML before the login form to include additional information or branding elements.
• Custom HTML (After Login Form): Add custom HTML after the login form to include additional information or branding elements.

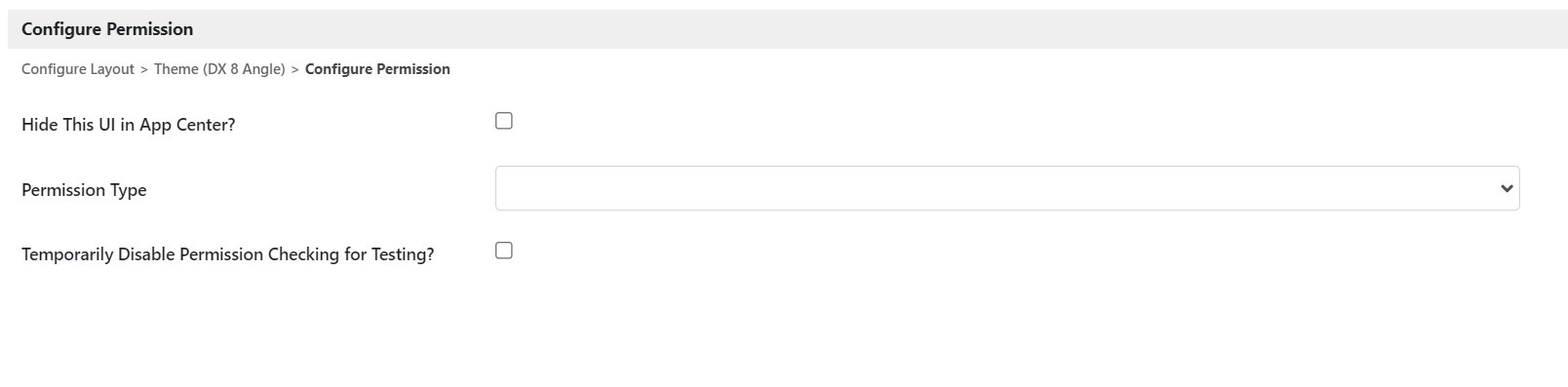

Permission settings

Permission settings control who can access and see the UI in the App Center. You can hide the UI from the App Center listing, manage permission types, and temporarily disable permission checking for testing purposes. This ensures that only authorized users can access specific UI elements, maintaining security and appropriate access control.

Fields to Configure:

• Hide this UI in App Center?: When checked, this UI will not be listed in the App Center.
• Permission Type: The white list to determine access to this UI.
• Temporary Disable Permission Checking: Click the checkbox to disable all category menu permission checking.
