Plugin Properties Options

Usage

  • Plugin Properties Options allow a plugin to gather configuration data from a plugin user.
  • Plugin Properties Options should be returned in the abstract method getPropertyOptions in each plugin.

Structure

  • Plugin Properties Options are in JSON format.
  • Plugin Properties Options is an array of Properties Page object
  • A Properties Page object has 2 mandatory attributes called title and properties. It also has 2 optional attributes called validators and buttons.
[
    {
        title : 'Page Title',
        properties : [
            {
                name : 'Property Name',
                label : 'Property Label',
                description : 'Property Description', //optional, default is NULL
                type : 'Property Type',
                value : 'Property Value', //optional, default is null
                required : 'Mandatory or Not', //optional, 'true' or 'false', default is 'false'
                //… more attributes …
            }, //… more fields …
        ],
        validators : [  //optional
            //… properties custom validators …
        ],
        buttons : [  //optional
            //… custom properties page buttons …
        ]
    }, //… more properties page …
]

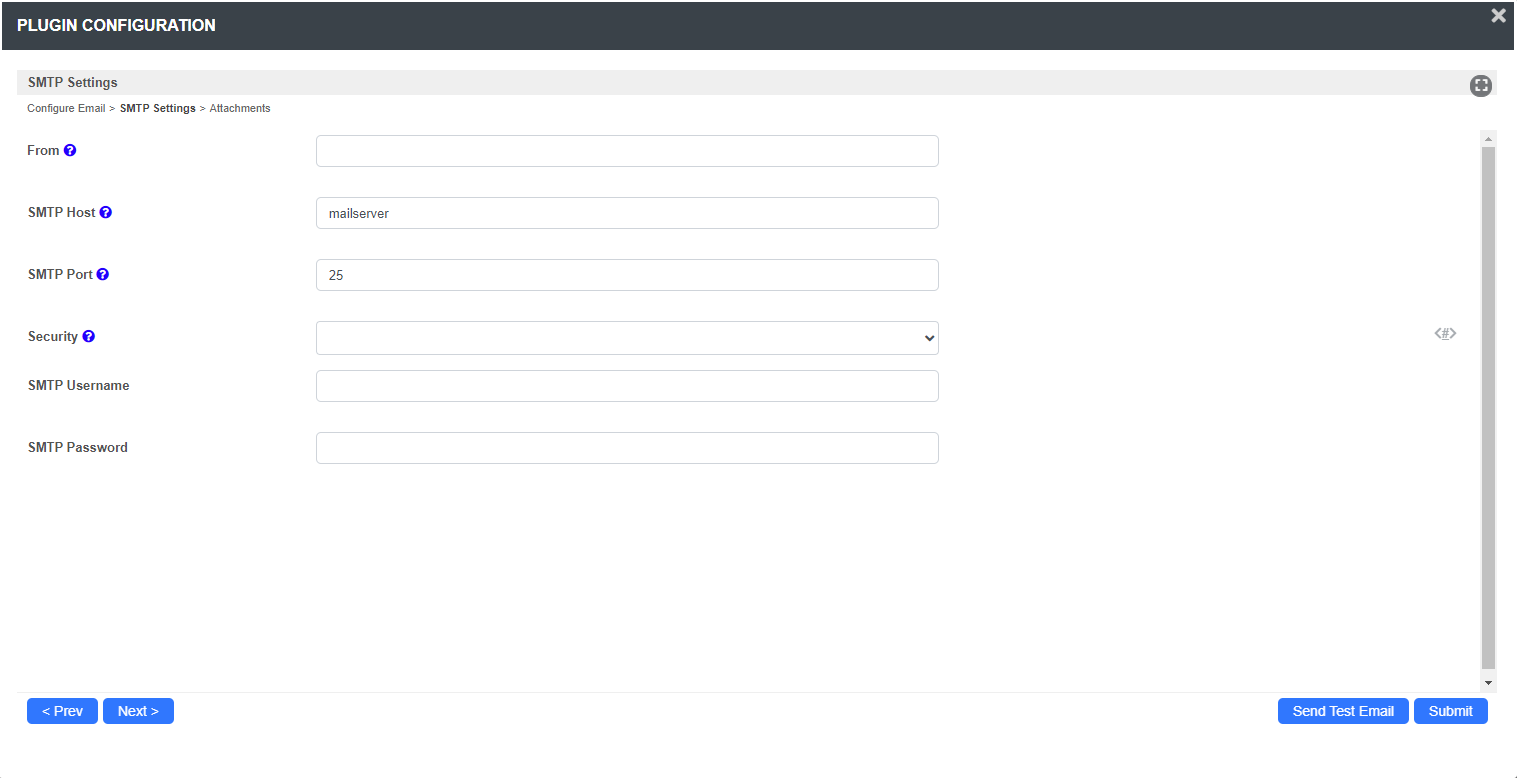

Sample look and feel

Field types

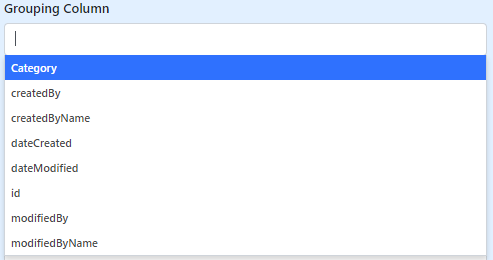

Auto complete

Check Box

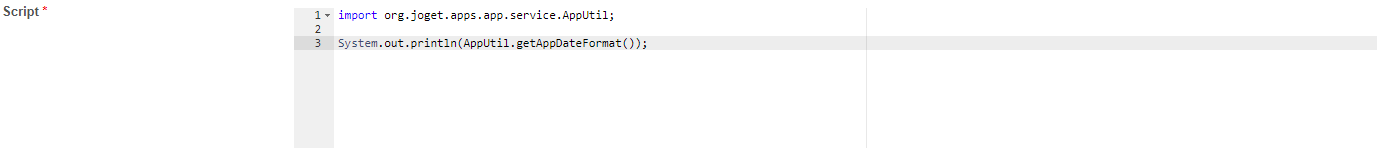

Code Editor

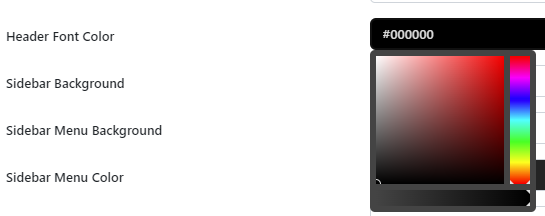

Color

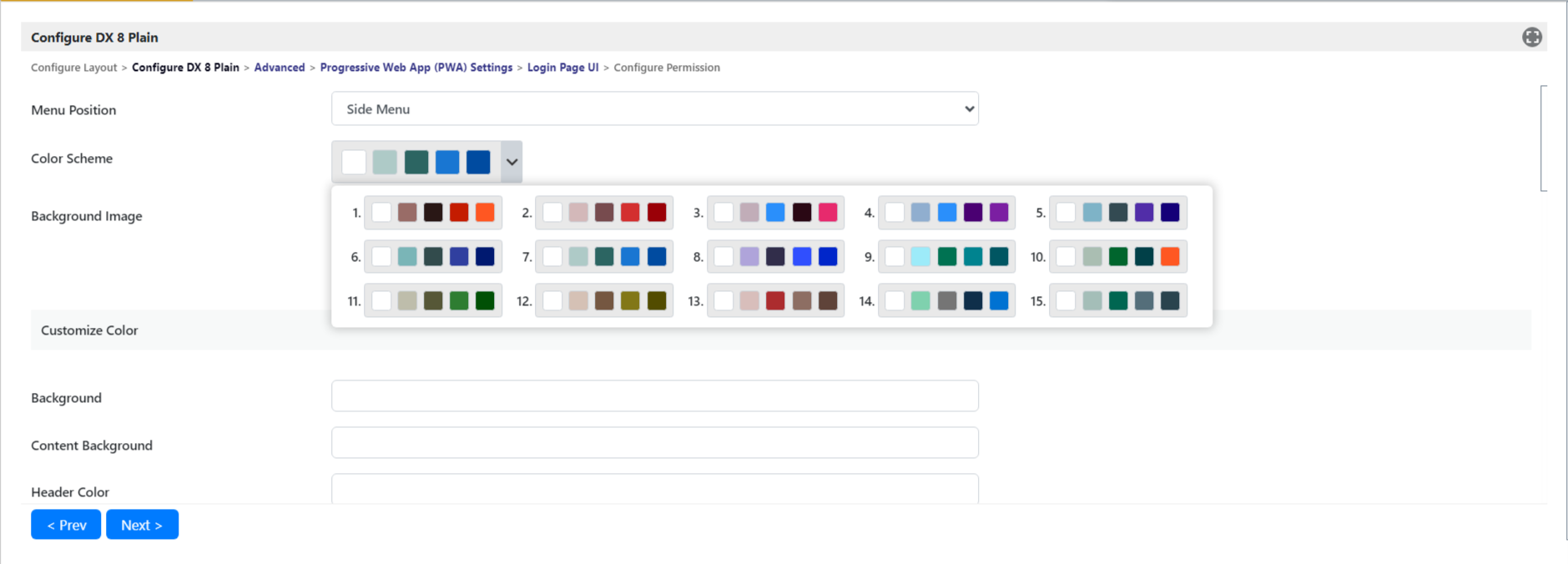

Color Scheme (New)

New Feature
This is a new feature in Joget DX 8



  • type: 'colorscheme'

  • value: Renders color options according to assigned hex color code.

//The first hex color code indicates the color group
//Hex color code after the first color code would be render as seen in example picture above
//Numbers of color can be determined based on number of hex color code after the first hex color code (color group)

//This example contains 5 colors
"value" : "#e9e9e9;#FFFFFF;#AABEB2;#00652D;#00796b;#004c40"

//This example contains 1 color
"value":"#e9e9e9;#FFFFFF"

//This example contains 3 colors
"value":"#e9e9e9;#3b2d2d;#7d0956;#0cf2e7"
  • If we wish to access the property editor, the code can be located at the directory located at the disk drive Joget is downloaded (Example : <Joget DX 8 installation folder>/apache-tomcat-9.0.62/webapps/jw/js/jquery/jquery.propertyeditor.js)

  • Color group, color choices, and no. of color options can be determine at the array called schemeOptions (line 10368):

//Shows color group: #e9e9e9
//With 5 colors options
//With 15 color choices
schemeOptions : [
        "#e9e9e9;#FFFFFF;#996C67;#291715;#c41c00;#ff5722",
        "#e9e9e9;#FFFFFF;#D3B8B9;#774B4E;#d32f2f;#9a0007",
        "#e9e9e9;#FFFFFF;#C1ADB8;#2a8ffb;#2a0814;#e72a6d",
        "#e9e9e9;#FFFFFF;#90AECF;#2a8ffb;#4a0072;#7b1fa2",
        "#e9e9e9;#FFFFFF;#7EB3C7;#334A52;#512da8;#140078",
        "#e9e9e9;#FFFFFF;#7AB5B7;#324B4C;#303f9f;#001970",
        "#e9e9e9;#FFFFFF;#AECAC7;#2C6562;#1976d2;#004ba0",
        "#e9e9e9;#FFFFFF;#AFA4DA;#312D4A;#304ffe;#0026ca",
        "#e9e9e9;#FFFFFF;#9debf9;#007252;#00838f;#005662",
        "#e9e9e9;#FFFFFF;#AABEB2;#00652D;#014048;#ff5722",
        "#e9e9e9;#FFFFFF;#BEBDAB;#565737;#2e7d32;#005005",
        "#e9e9e9;#FFFFFF;#D5C1B5;#755741;#827717;#524c00",
        "#e9e9e9;#FFFFFF;#D8BEBB;#AC2C2E;#8d6e63;#5f4339",
        "#e9e9e9;#FFFFFF;#7FD1AE;#757575;#0f2f4a;#0072d2",
        "#e9e9e9;#FFFFFF;#A4BEB8;#006651;#546e7a;#29434e"
    ],

  • If you wanted to change the no. of color options shown, simply change the number in line: 10424, 10426 & 10450 to the desired number such as 3. You are required to change the no of color options in the schemeOptions too.

//Line 10424 & 10426
        if (colors.length === 6) { //Change 6 to desired number
            html += '<colorgroup style="background:'+colors[0]+';">';
            for (var i=1; i<6; i++) { //Change 6 to desired number
                html += '<color style="background:'+colors[i]+';"></color>';
            }
            html += '</colorgroup>';
        } else {
            html += '<colorgroup><color></color><color></color><color></color><color></color><color></color></colorgroup>';
        }

//Line 10450
        for (var i = 1; i < 6; i++) //Change 6 to desired number
        {
                html += '<color style=\"background:'+values[i]+';\"></color>';
        }

Combine Grid

  • Combine Grid is used to migrate 2 or more single value property fields from old version plugin (etc Text Field & Select Box) to multi values field in Grid View.
  • Combine Grid does not support 'value' attribute.
  • type: 'GridCombine'
  • columns: A JSON array of 'column' JSON objects which has 2 mandatory 'key' & 'label' attributes and 2 optional 'required' & 'options' attribute.
    • key: Identifier of this column. This value need to be same with the field 'name' that need to migrate from single value field to multiple value field.
    • label: Label of the column header
    • options: Optional, an array of JSON object with 'value' and 'label' attributes. A column with 'options' attribute will display the input field as select box.
    • required: Optional, 'true' or 'false'. A grid cell with the 'required' attribute of 'row' and 'column' set to 'true' value is a mandatory field.
columns : [
    {key : 'key', label : 'Columns'},
    {key : 'value', label : 'Value', required: 'true'},
    {key : 'label', label : 'Label', required: 'true'},
    {key : 'width', label : 'Width', options:[
        {value : '10%', label : '10%'},
        {value : '20%', label : '20%'},
        {value : '30%', label : '20%'},
        {value : '40%', label : '20%'}
    ]}
]

Custom Scripting (New)

  • type: 'custom'
  • script_url: A URL which will return script of the selected element. Built-in URL is "[CONTEXT_PATH]/web/property/json[APP_PATH]/[CLASS_PATH]" which will return the script of a plugin.

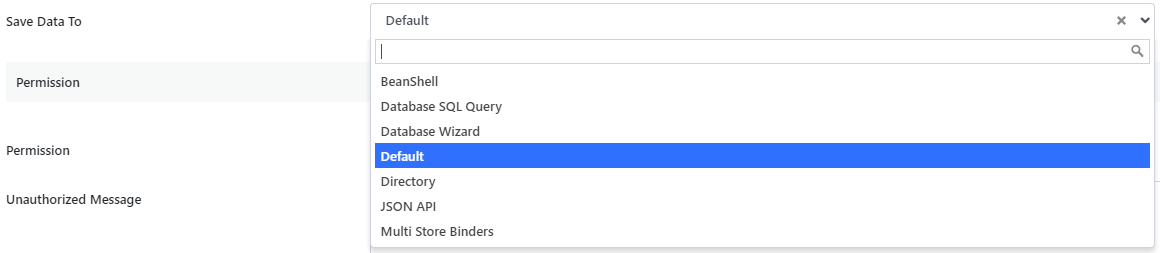

Element Select Box

  • type : 'ElementSelect'
  • url: A URL which will return Properties Options JSON object of the selected element. Built-in URL is "[CONTEXT_PATH]/web/property/json[APP_PATH]/getPropertyOptions" which will return the Properties Options JSON object of a plugin.
  • keep_value_on_change : Optional, 'true' or 'false'. Used to decide whether to keep the configuration of the properties options of previous selected element when a new element is selected.
  • Refer to Options Field Attributes for extra attributes.
  • Refer to Dependency Field Attributes for extra attributes to do show/hide this field based on other field value.
  • Usually used for select a plugin and configure the properties of the selected plugin.
  • Refer to Retrieve Properties Value in Plugin - ElementSelectBox on how to use the value of this field type in the plugin code.

File

  • type: 'file'
  • appPath: '[APP_PATH]',
  • allowInput: Optional, 'true' or 'false'. Set to 'true' to allow custom link.
  • isPublic: Optional, 'true' or 'false'. Set to 'true' to auto set the permission to access by anonymous.
  • allowType: Optional, a string of file extension seperated (;). Example: ".jpeg;.jpg;.gif;.png".
  • maxSize: Optional, integer value in string format. In kB.
  • Refer to Regular Express (Regex) Validation Attributes for extra attributes to do validation using regex.
  • Refer to Dependency Field Attributes for extra attributes to do show/hide this field based on other field value.
  • Refer to Retrieve Properties Value in Plugin - Single Value Field on how to use the value of this field type in the plugin code.

Fixed Row Grid

  • type: 'GridFixedRow'
  • columns: A JSON array of 'column' JSON objects which has 2 mandatory 'key' & 'label' attributes and 2 optional 'required' & 'options' attribute.
    • key: Identifier of this column.
    • label: Label of the column header
    • options: Optional, an array of JSON object with 'value' and 'label' attributes. A column with 'options' attribute will display the input field as select box.
    • required: Optional, 'true' or 'false'. A grid cell with the 'required' attribute of 'row' and 'column' set to 'true' value is a mandatory field.
  • rows: A JSON array of 'row' JSON Object with 'label' attribute and an optional 'required' attribute. A grid cell with the 'required' attribute of 'row' and 'column' set to 'true' value is a mandatory field.
    • label: Label of a row. Used to populate in the first column or every row.
    • required: Optional, 'true' or 'false'. A grid cell with the 'required' attribute of 'row' and 'column' set to 'true' value is a mandatory field.
  • value: A JSON array of grid row values in JSON Object format with all the 'key' attribute of 'column' object used as attribute.
columns : [
    {key : 'key', label : 'Columns'}, // first column will used to populate row label
    {key : 'value', label : 'Value', required: 'true'},
    {key : 'label', label : 'Label', required: 'true'},
    {key : 'width', label : 'Width', options:[
        {value : '10%', label : '10%'},
        {value : '20%', label : '20%'},
        {value : '30%', label : '20%'},
        {value : '40%', label : '20%'}
    ]}
],
rows : [
    {label : 'Username', required: 'true'},
    {label : 'Status'},
    {label : 'Message'},
    {label : 'Date'}
],
value : [
    {label : 'Username'},
    {label : 'Status'},
    {label : 'Message', width : '20%'},
    {label : 'Date', value : 'dateCreated'}
]

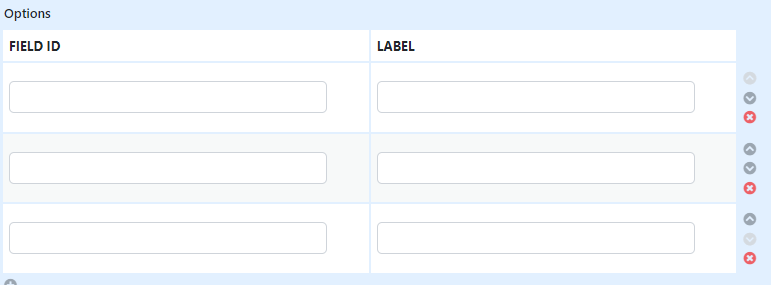

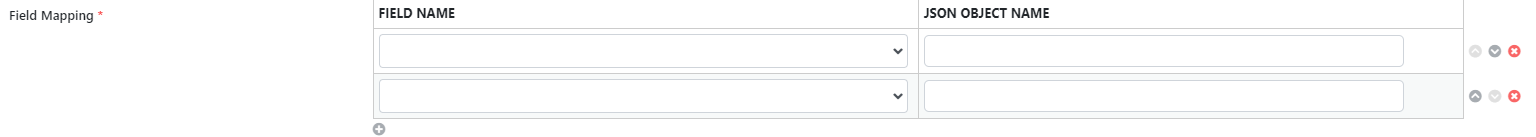

Grid

  • type: 'Grid'
  • columns: A JSON array of 'column' JSON objects which has 2 mandatory 'key' & 'label' attributes and 2 optional 'required' & 'options' attribute.
    • key: Identifier of this column.
    • label: Label of the column header
    • options: Optional, an array of JSON object with 'value' and 'label' attributes. A column with 'options' attribute will display the input field as select box.
    • required: Optional, 'true' or 'false'. A grid cell with the 'required' attribute of 'row' and 'column' set to 'true' value is a mandatory field.
  • value: A JSON array of grid row values in JSON Object format with all the 'key' attribute of 'column' object used as attribute.
columns : [
    {key : 'value', label : 'Value', required: 'true'},
    {key : 'label', label : 'Label', required: 'true'},
    {key : 'width', label : 'Width', options:[
        {value : '10%', label : '10%'},
        {value : '20%', label : '20%'},
        {value : '30%', label : '20%'},
        {value : '40%', label : '20%'}
    ]}
],
value : [
    {label : 'Username', value : 'username'},
    {label : 'Status', value : 'status'},
    {label : 'Message', value : 'message', width : '20%'},
    {label : 'Date', value : 'dateCreated'}
]



Header

  • type: 'Header'
  • Header does not support 'value' and 'required' attributes.
  • Refer to Dependency Field Attributes for extra attributes to do show/hide this field based on other field value.
  • This field type is used for separate the fields into different groups. It is not use for capture data.

Hidden Field

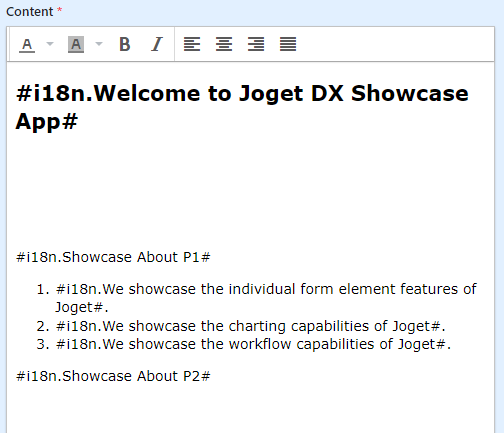

HTML Editor

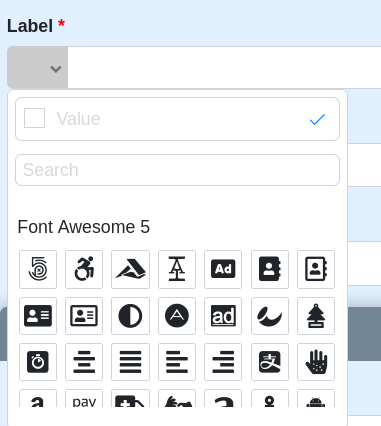

Icon textfield (New)



  • type: 'icon-textfield'
  • Refer to Dependency Field Attributes for extra attributes to do show/hide this field based on other field value.

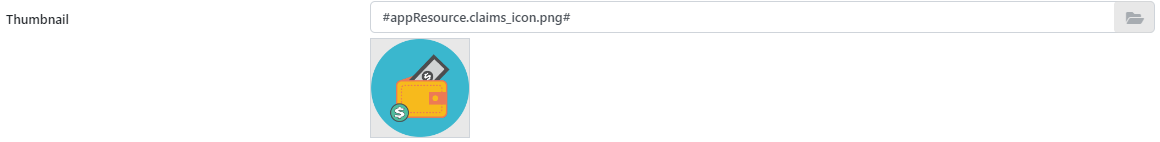

  • type: 'image'
  • appPath: '[APP_PATH]',
  • allowInput: Optional, 'true' or 'false'. Set to 'true' to allow custom link.
  • isPublic: Optional, 'true' or 'false'. Set to 'true' to auto set the permission to access by anonymous.
  • allowType: Optional, a string of file extension seperated (;). Example: ".jpeg;.jpg;.gif;.png".
  • maxSize: Optional, integer value in string format. In kB.
  • imageSize: Optional, can be integer value in string format or a css expression.
    Example: '50' or "width:100px;height:70px;".
  • Refer to Regular Express (Regex) Validation Attributes for extra attributes to do validation using regex.
  • Refer to Dependency Field Attributes for extra attributes to do show/hide this field based on other field value.
  • Refer to Retrieve Properties Value in Plugin - Single Value Field on how to use the value of this field type in the plugin code.

Label

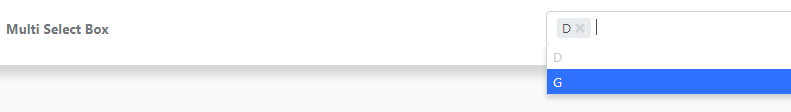

Multi Select Box

Password Field

Radio Button

Readonly Text Field

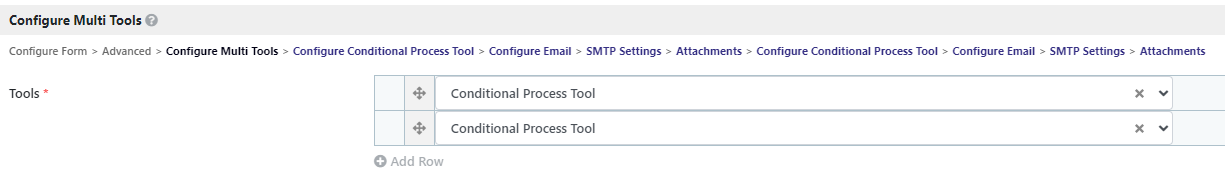

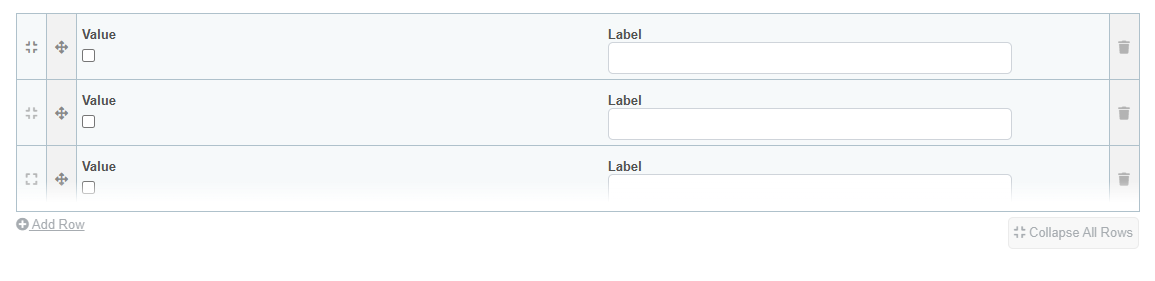

Repeater (New)

  • type: 'Repeater'
  • fields : A JSON array of 'fields' JSON objects which can support any properties field types and its attributes.
  • Refer to Field Types for the attributes of the fields.
fields : [
    {name : 'value', label : 'Value', required: 'true', type: 'checkbox', options: [{ value: 'true', label: ''}]},
    {name : 'label', label : 'Label', required: 'true', type: 'textfield'}
]

Multiselect in Grid Interface (New)

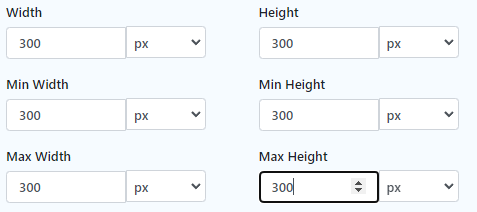

Number (New)

  • type: 'number'

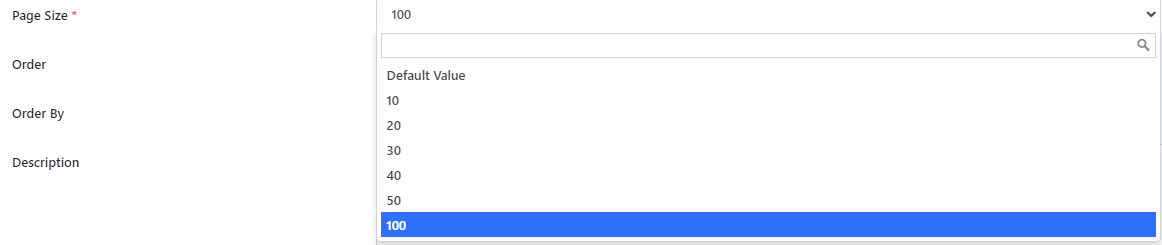

Select Box

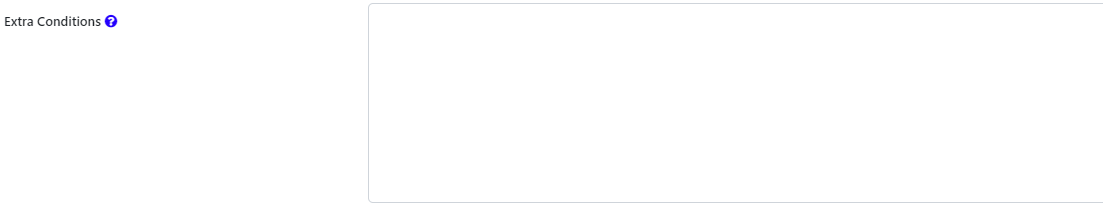

Text Area

Text Field

Regular Express (Regex) Validation Attributes

  • The following attributes are designed for Auto Complete, Password Field, Text Area and Text Field.
  • regex_validation: Optional, regular express in string format.
  • validation_message: Optional, error message to display when validation failure.
{
    regex_validation : '^[a-zA-Z0-9_]+$',
    validation_message : 'Invalid ID!!'
}

Javascript Function Validation Attributes

  • The following attributes are designed for all field type.
  • js_validation: Optional, Javascript function name in string format or a function.
{
    js_validation : 'functionName'
}
{
    js_validation : function(fieldName, fieldValue) {
        if (fieldValue.indexOf("#") > 0) {
            return "Error! Value contains #";
        }
        return null;
    }
}

Dependency Field Attributes

  • The following attributes are available for all field types.
  • These attributes are used to show/hide a field based on the value of another field.
  • The value of a field hidden by these attributes will be ignore during save.
  • control_field: Optional, 'name' of another field used to control the show/hide of current field.
  • control_value: Optional, value or regular expression (regex) in string format. This value need to match the value of the controlling field in order to make the field visible.
  • control_use_regex : Optional, 'true' or 'false'. Default to 'false'. Set to 'true' to use regular expression (regex) in matching the value.
{
    control_field: 'chartType',
    control_value: 'bar|xy|area|bubble|line|candlestick|ohlc',
    control_use_regex: 'true',
}

Options Field Attributes

  • The following attributes are designed for options fields like Auto Complete, Check Box, Element Select Box, Multi Select Box, Radio Button and Select Box.
  • You can choose to use one of the following attributes options, options_ajax, options_callback or options_script to populate the options for the field.
  • options: Optional, an array of JSON object with 'value' and 'label' attributes.
options : [
    {value: 'value1', label : 'Value 1'},
    {value: 'value2', label : 'Value 2'},
    {value: 'value3', label : 'Value 3'}
]
  • options_ajax: Optional, a URL which will return an array of JSON object with 'value' and 'label' attributes.
options_ajax : '[CONTEXT_PATH]/web/json/console/app[APP_PATH]/datalist/options'

options_ajax_on_change: Optional, name of a property field. Used together with 'options_ajax' attribute. The field name and its value will passed as HTTP request parameter to the URL.

options_ajax_on_change : 'type'
options_ajax : '[CONTEXT_PATH]/web/json/app[APP_PATH]/plugin/org.joget.plugin.enterprise.SamplePlugin/service?action=getJson'

options_callback: Optional, a javascript function name. All attributes in the field will passed as a single JSON object parameter to this function. The function should return an array of JSON object with 'value' and 'label' attributes.

options_callback: 'DatalistBuilder.getColumnOptions'

options_script: Optional, a string of javascript which will return an array of JSON object with 'value' and 'label' attributes.

options_script: 'var tempArray = [{\'label\':\'\',\'value\':\'\'}];
for(ee in DatalistBuilder.availableColumns){ var temp = {
\'label\' : UI.escapeHTML(DatalistBuilder.availableColumns[ee].label),
\'value\' : DatalistBuilder.availableColumns[ee].id};
tempArray.push(temp);}tempArray;'

Built-in JSON API for 'options_ajax'

  • [CONTEXT_PATH]/web/json/console/app[APP_PATH]/forms/options
    Return all available forms of current app.
  • [CONTEXT_PATH]/web/json/console/app[APP_PATH]/datalist/options
    Return all available datalists of current app.
  • [CONTEXT_PATH]/web/json/console/app[APP_PATH]/userview/options
    Return all available userviews of current app.
  • [CONTEXT_PATH]/web/property/json/getElements?classname={plugin interface/abstract class name, optional}
    Return all available plugins based on the classname filter.
  • [CONTEXT_PATH]/web/json/console/app[APP_PATH]/form/columns/options?formDefId={Form Def Id, optional}&tableName={Form Data tabel name, optional}&tables={Additional form data tables name seperated by (;), optional}&fields={Additional fields to add to result seperated by (;), optional}
    Return all available fields from form data table

Built-in Javascript Function for 'options_callback'

  • DatalistBuilder.getColumnOptions(properties)
    Can be used by plugins related to Datalist Builder. It return all available columns based on binder configuration.

Validator Types

  • Page validator is execute during change page.
  • All fields data in the same page will pass to the validator for validation.

AJAX

  • Call to a URL for validation.
  • type: 'AJAX'
  • url: An URL return a JSON Object with status (success or fail) & message (JSONArray of String) attribute
  • default_error_message: Optional. A string of error message.

Page Button

  • Page button can be added on the bottom of each page to provide extra feature. Such as send an test email to test the email configuration or make a test connection to database.
  • Page button will collect the required fields data from the page and popup dialog and call an AJAX URL.
  • name: Identifier of this button.
  • label: Label of the button.
  • ajax_url: A URL to execute the button action. The URL should return a JSON Object with message (String) attribute.
  • fields: An array of fields name in the same page that will be used by this button.
  • addition_fields:  An array of Property Field JSON object that will be shown in a popup dialog to collect extra data.
  • Example:
buttons : [{
    name : 'testmail',
    label : 'Send Test Email',
    ajax_url : '[CONTEXT_PATH]/web/json/app[APP_PATH]/plugin/org.joget.apps.app.lib.EmailTool/service?action=testmail',
    fields : ['host', 'port', 'security', 'username', 'password'],
    addition_fields : [
        {
            name : 'from',
            label : 'From',
            type : 'textfield',
            required : 'True'
        },
        {
            name : 'toSpecific',
            label : 'To',
            type : 'textfield',
            required : 'True'
        }
    ]
}]

Variable

[CONTEXT_PATH]

  • This variable will be replaced by Context Path of current URL.
  • Usually used in property attribute value which is URL
  • Example : '[CONTEXT_PATH]/web/property/json/getElements?classname=org.joget.apps.form.model.FormValidator'
  • Resulted URL : '/jw/web/property/json/getElements?classname=org.joget.apps.form.model.FormValidator'

[APP_PATH]

  • This variable will be replaced by Current App Id and App Version of current URL.
  • Usually used in property attribute value which is URL
  • Example : '[CONTEXT_PATH]/web/json/console/app[APP_PATH]/datalist/options'
  • Resulted URL : '/jw/web/json/console/app/crm/3/datalist/options'

Retrieve Properties Value in Plugin

  • All the plugin must extends the "org.joget.plugin.base.ExtDefaultPlugin" abstract class. You can use the "Object getProperty(String)" and "String getPropertyString(String)" method to retrieve the configured properties.

Single Value Field

String value = getPropertyString("property_name");

Multi Values Field

String[] values = getPropertyString("property_name").split(";");

Combine Grid Field

String[] col1_values = getPropertyString("col1_name").split(";");
String[] col2_values = getPropertyString("col2_name").split(";");

Grid Field

Object columns = getProperty("property_name");
if (columns != null) {
    for (Object colObj : (Object[]) columns) {
        Map col = (Map) colObj;
        String col1_value = (String) opt.get("col1_key");
        String col2_value = (String) opt.get("col2_key");
    }
}

Repeater Field

Object fields = getProperty("property_name");
if (fields != null) {
    for (Object fieldObj : (Object[]) fields) {
        Map field = (Map) fieldObj;
        String field1_value = (String) field.get("field1_key");
        String field2_value = (String) field.get("field2_key");
    }
}

Element Select Box

import org.joget.plugin.base.PluginManager;
import org.joget.apps.app.service.AppUtil;
import org.joget.plugin.base.ExtDefaultPlugin;

Object element = getProperty("property_name");
if (element != null && element instanceof Map) {
    Map elementMap = (Map) element;
    String className = (String) elementMap.get("className");
    Map<String, Object> properties = (Map<String, Object>) elementMap.get("properties");

    //convert it to plugin
    PluginManager pm = (PluginManager) AppUtil.getApplicationContext().getBean("pluginManager");
    ExtDefaultPlugin plugin = (ExtDefaultPlugin) pm.getPlugin(className);
    if (plugin != null) {
        plugin.setProperties(properties);
    }
}
Created by Damian Last modified by Debanraj on Aug 17, 2025
Tags:
Previous Plugin Base Abstract Class and Interface NextExamples and Samples
