Map Routes to Plugins

In Joget DX 8, routes within process flows can be dynamically managed using Smart Decisions Plugins, offering diverse capabilities for decision-making scenarios. This section overviews mapping routes to decision plugins to enhance process automation and flexibility.

Routes in Joget DX 8 define the flow of activities within process workflows. Users can implement sophisticated decision-making logic without extensive coding by mapping routes to Smart Decisions Plugins, leveraging pre-configured plugins tailored for different decision scenarios.

Smart decisions plugins

Joget DX 8 supports several Smart Decisions Plugins that cater to various decision-making needs:

• Bean Shell Decision Plugin: Enables complex decision-making through custom Java code, offering flexibility for advanced logic implementations.
• Simple Rules Decision Plugin: Provides a no-code configurable approach to define routing and actions within processes, simplifying decision logic setup.
• Simple Tensorflow AI Decision Plugin: Integrates with pre-trained Tensorflow AI models to execute and use AI-generated outputs for decision-making in process routes.

How does it work?

To map routes to plugins within the Joget DX environment, follow these steps using the example of the built-in Expenses Claims app:

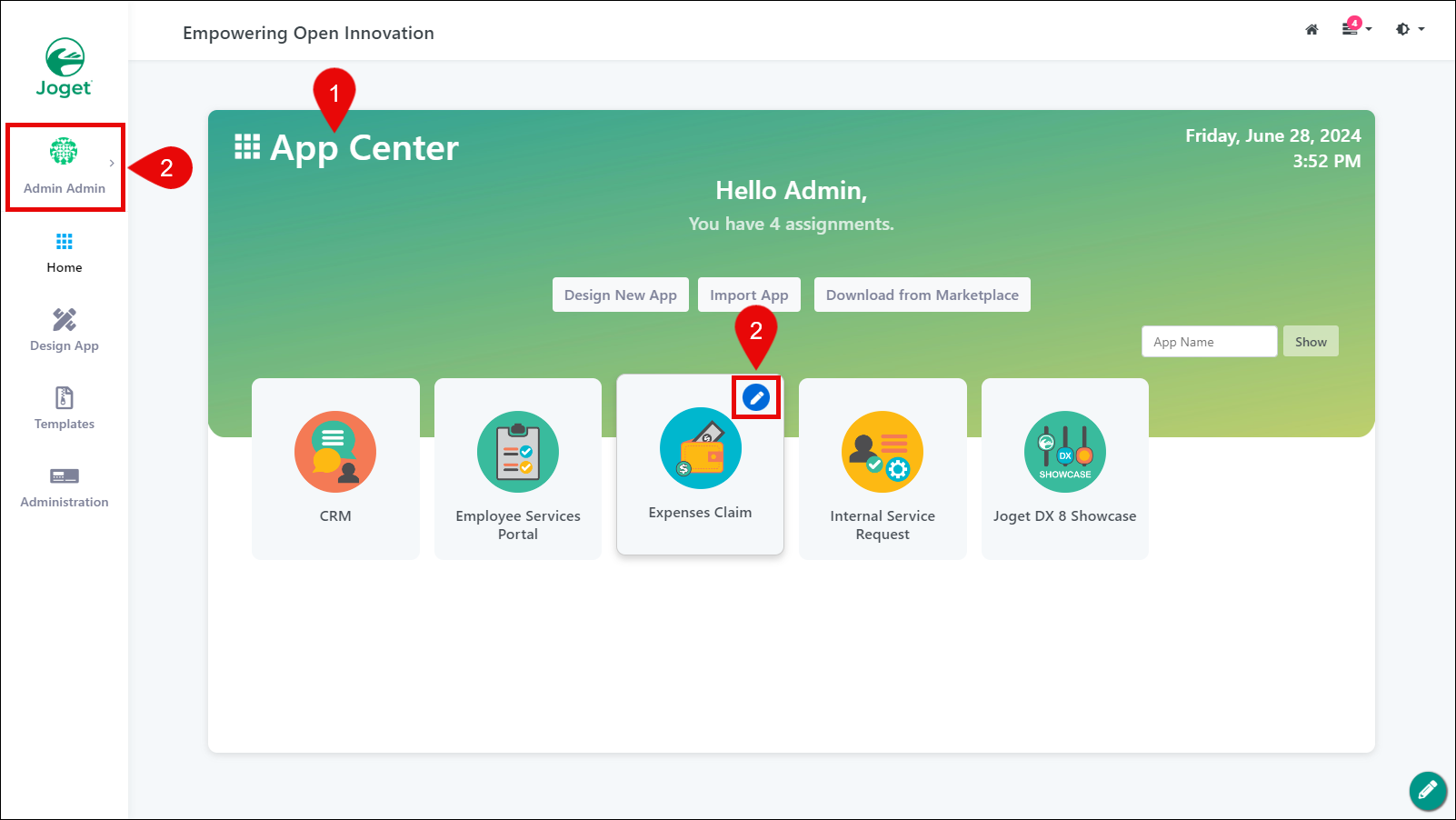

1. Start the Joget Server and open the App Center.
2. Log in as an admin and click on the pencil icon on the Expenses Claim to open the Design App.

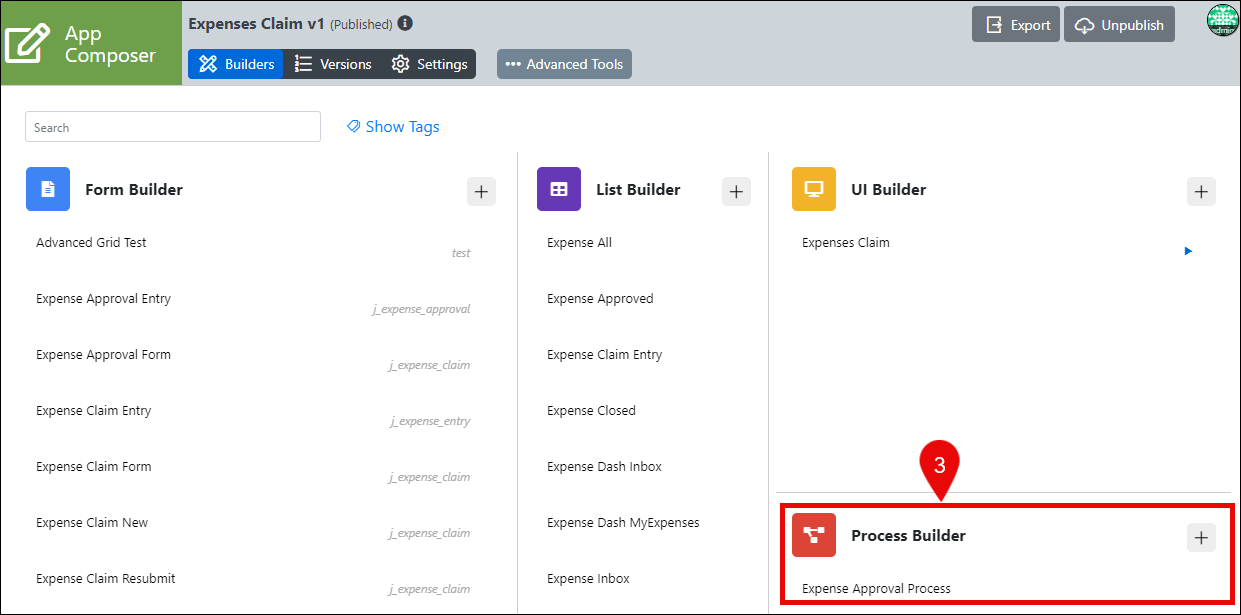

3.  In the App Composer, click on Process Builder.


4. There are two approaches to map routes to plugins:

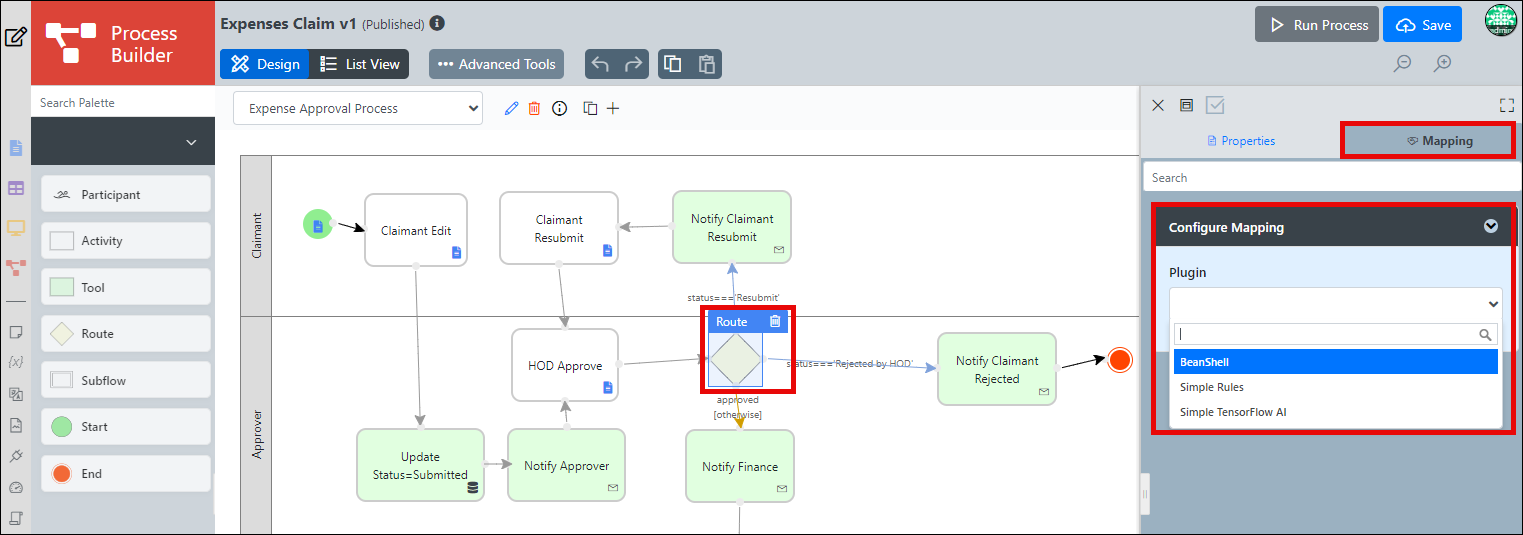

5. 1. Direct Mapping via Route Configuration: Click on any route within the Process Builder, then go to the Mapping tab to configure decision plugins.

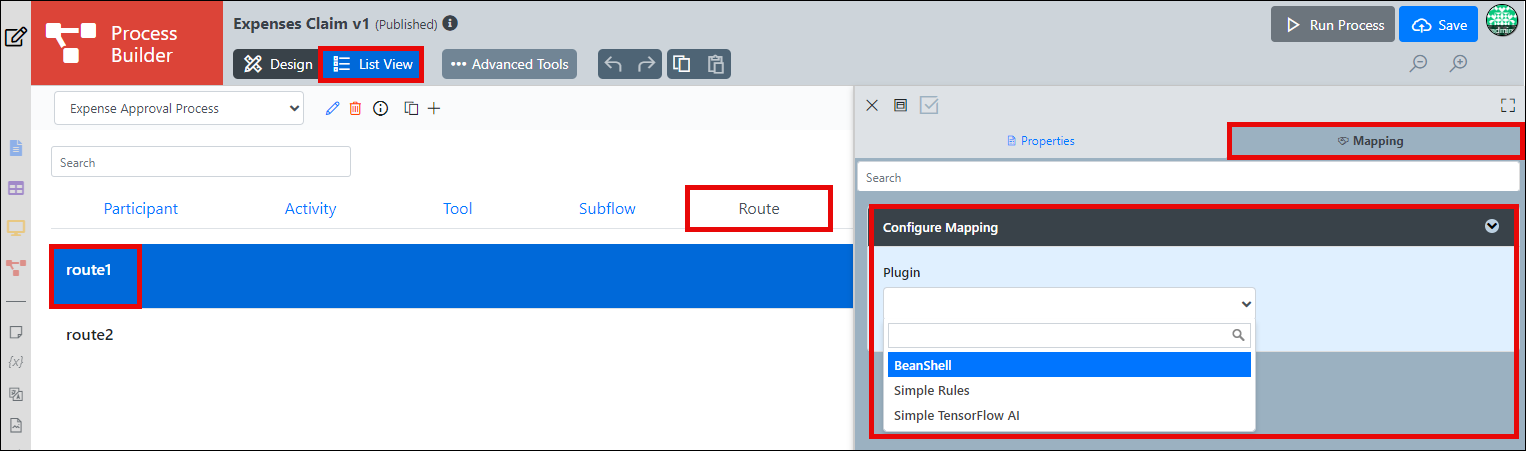

   2. Using List View for Route Management: Access the List View button to manage routes comprehensively. Click on a specific route tab and configure mappings using decision plugins.


List of decision tool plugins

Joget DX 8 offers a variety of decision tool plugins to enhance route mapping within workflows. These plugins provide advanced decision-making capabilities:

• BeanShell Decision
• Simple Rules Decision
• Simple Tensorflow AI Decision
