LDAP Directory Manager

Introduction

The LDAP Directory Manager has a Debug Mode (option in the last tab) which is highly recommended to be turned on when configuring the LDAP plugin for the first time or when you are having issues. When debug mode is on, you can find all the search queries performed by the directory manager. They will all be logged into the joget.log files. From there, you can observe the search filter string and improve the accuracy and performance of the lookup. You can remove the debug checkbox once everything is running well.

User license determines how many eventual users (sorted alphabetically by username in ascending order) from your LDAP/AD who can login to Joget. Make sure that you configure the plugin accordingly.

As for the 3 users limitation with trial license, you will need to remove all the other users until your test user can be at the top 3 spot in the user list.

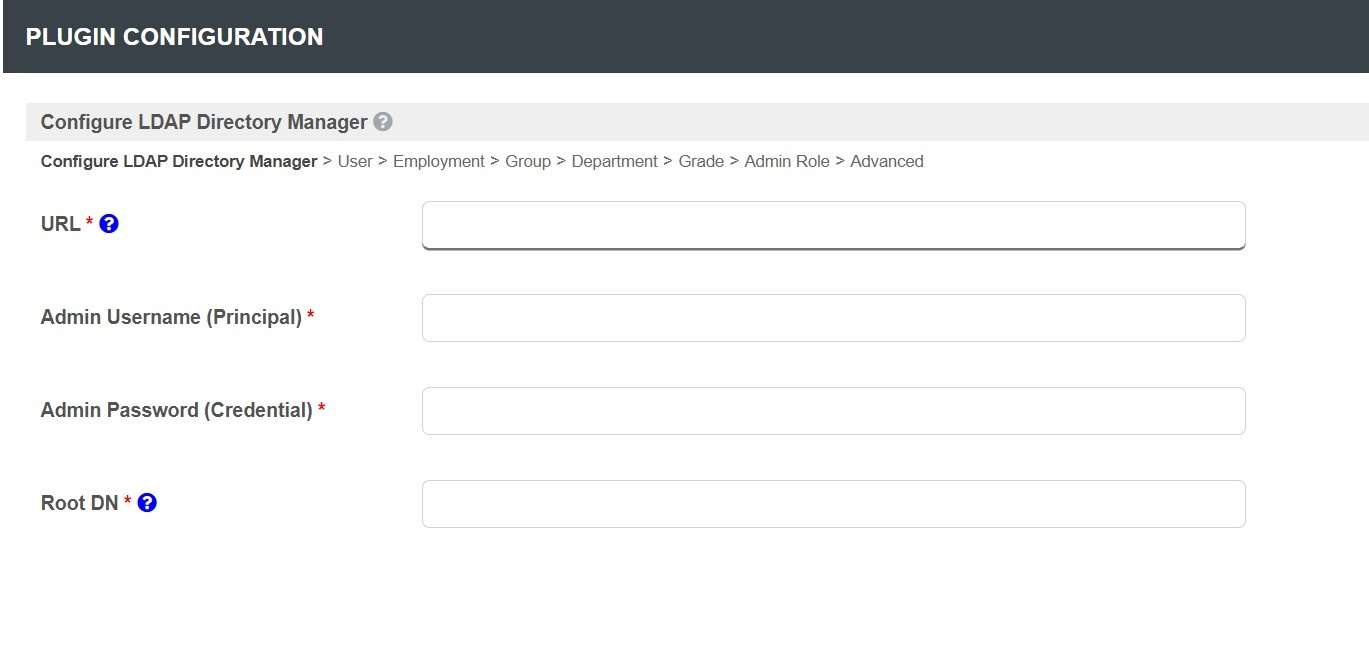

Configure LDAP directory manager

Fields to configure:

• URL:

  • ldap://IP_ADDRESS:389
  • ldaps://IP_ADDRESS:636
• Admin Username (Principal): LDAP username with read permission to LDAP/AD.
  Example: cn=admin,dc=joget,dc=org
• Admin Password (Credential): admin
• Root DN: DC=joget,DC=org

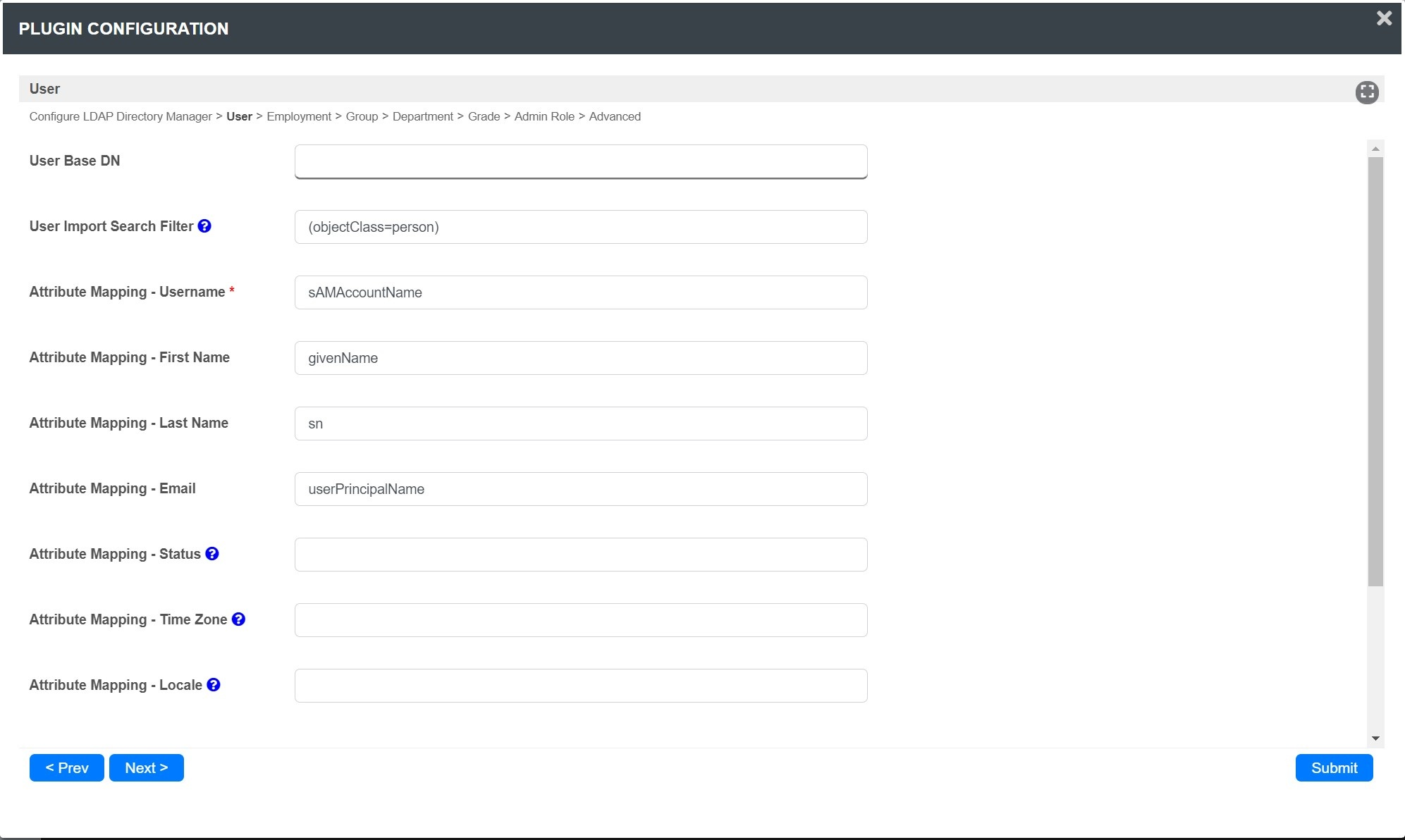

User

Fields to configure:

• User Base DN: Set the user base DN property.

  Tips
  If you set the User Base DN to your LDAP Root DN, it means that the search will start from the Root DN until it finds all the results that match the search filter.
  So, setting the User Base DN precisely is very important as it will decide where the search is starting from. It will save all the unnecessary searches between the Root DN and your User Base DN.

  Root DN


  DC=joget,DC=org

  Under the Root DN, you have the following DN:


  DC=HR,DC=joget,DC=org
DC=Product Department,DC=joget,DC=org
DC=Operation,DC=joget,DC=org
DC=Users,DC=joget,DC=org

  If your users are all under DC=Users, DC=joget,DC=org, you should set this to User Base DN.
  By doing this, it will not go through all the other entries and their child entries before reaching DC=Users, DC=joget,DC=org.
• User Import Search Filter: (objectClass=person)

  Tips
  Value


  (&(objectClass=person)(|(cn=admin)(cn=cat)(cn=jack)(cn=john)(cn=jackie)))

  This means all the LDAP entries that have objectClass attribute equal to person and cn attribute equal to either admin, cat, jack, john or jackie are Joget users.
  So, when the admin performs a login, the search filter will add an additional filter and become (&(&(objectClass=person)(|(cn=admin)(cn=cat)(cn=jack)(cn=john)(cn=jackie)))(cn=admin)).
  You will notice that an extra (cn=admin) is added to the search filter to ensure it returns only the admin user.



  User License

  User license determines how many eventual users (sorted alphabetically) from your LDAP/AD can log in to the system. You can use this attribute to control the number of users returned from your LDAP.

  For the trial license, there is a 3-user limitation: if you would like to perform tests on several test users, you will need to remove all the other users until your test user can be in the top 3 spots in the user list. See LDAP User Management.

• Attribute Mapping - Username: cn
• Attribute Mapping - First Name: givenName
• Attribute Mapping - Last Name: sn
• Attribute Mapping - Email: mail
• Attribute Mapping - Status: status
• Attribute Mapping - Time Zone: 8
• Attribute Mapping - Locale: en_US

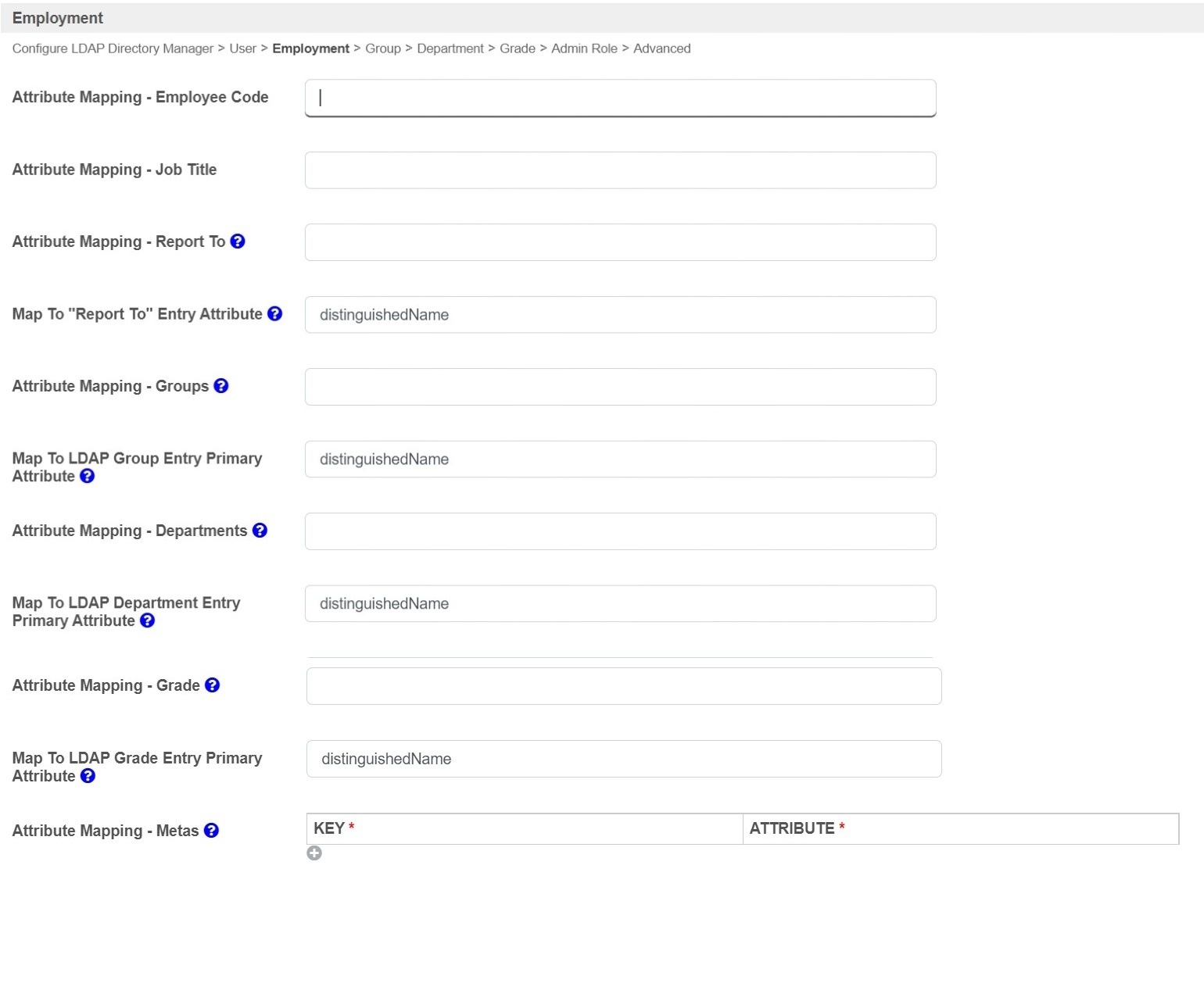

Employment

Fields to configure:

• Attribute Mapping - Employee Code
• Attribute Mapping - Job Title
• Attribute Mapping - Report To
• Map To "Report To" Entry Attribute
• Attribute Mapping - Groups
• Map To LDAP Group Entry Primary Attribute: dn

  DN
  A distinguished name (usually just shortened to “DN”) uniquely identifies an entry and describes its position in the DIT. ... DNs are comprised of zero or more comma-separated components called relative distinguished names, or RDNs.


  Directory Service	DN Entity Name
  OpenLDAP	entryDN
  Microsoft AD	distinguishedName

• Attribute Mapping - Departments
• Map To LDAP Department Entry Primary Attribute: dn
• Attribute Mapping - Grade
• Map To LDAP Grade Entry Primary Attribute: dn
• Attribute Mapping - Metas: Additional attributes to retrieve using #user.USERNAME.meta.KEY# or #currentUser.meta.KEY#.


  Name	Description
  Key	Key name
  Attribute	Attribute name in LDAP

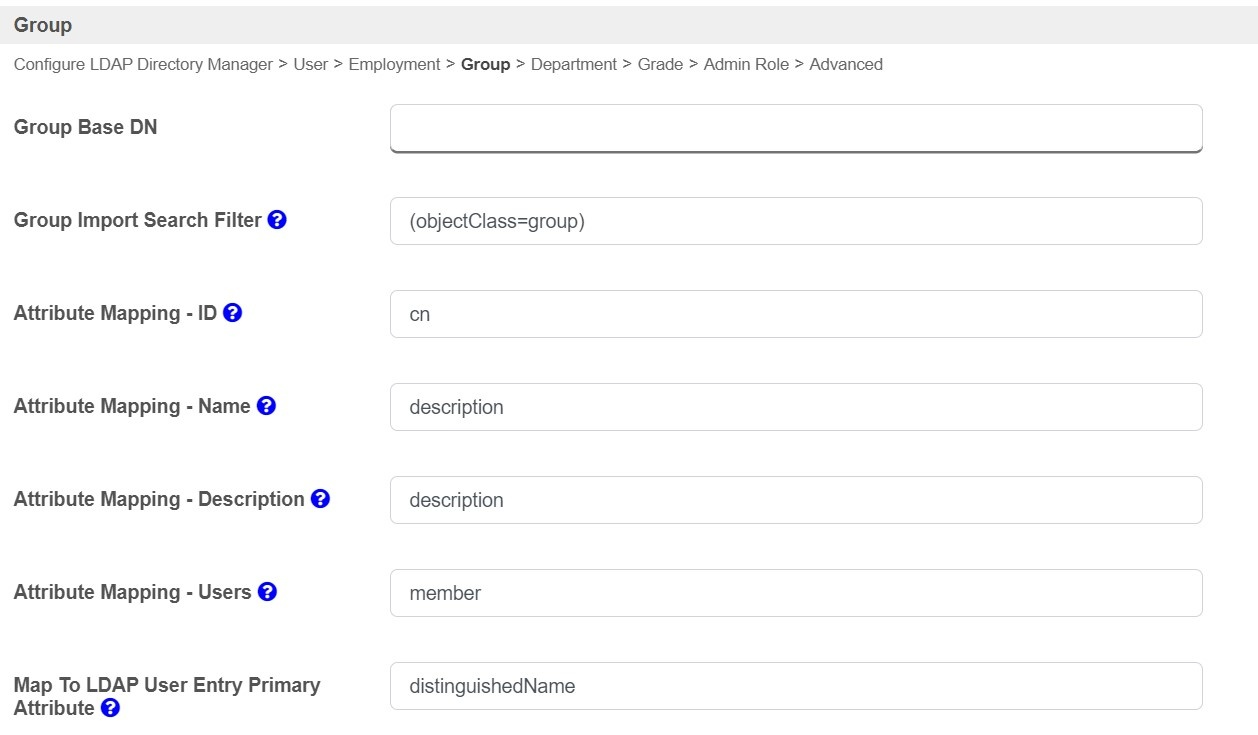

Group

Fields to configure:

• Group Base DN
• Group Import Search Filter: (objectClass=groupOfNames)
  See LDAP Search Filter syntax.
• Attribute Mapping - ID: cn
• Attribute Mapping - Name: description
• Attribute Mapping - Description: description
• Attribute Mapping - Users: member
• Map To LDAP User Entry Primary Attribute: dn

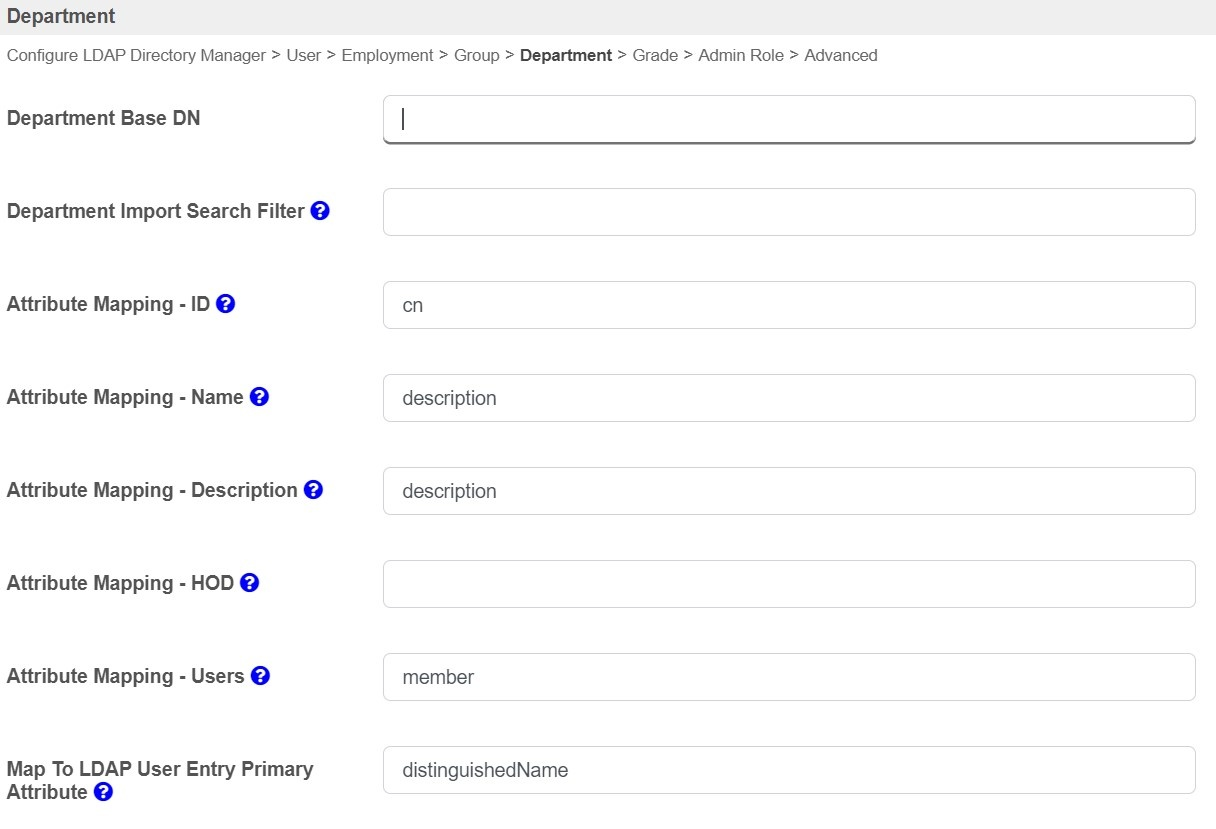

Department

Fields to configure:

• Department Base DN
• Department Import Search Filter: objectClass=groupOfNames)
  See LDAP Search Filter syntax.
• Attribute Mapping - ID: cn
• Attribute Mapping - Name: description
• Attribute Mapping - Description: description
• Attribute Mapping - HOD: owner
• Attribute Mapping - Users: member

  Tips

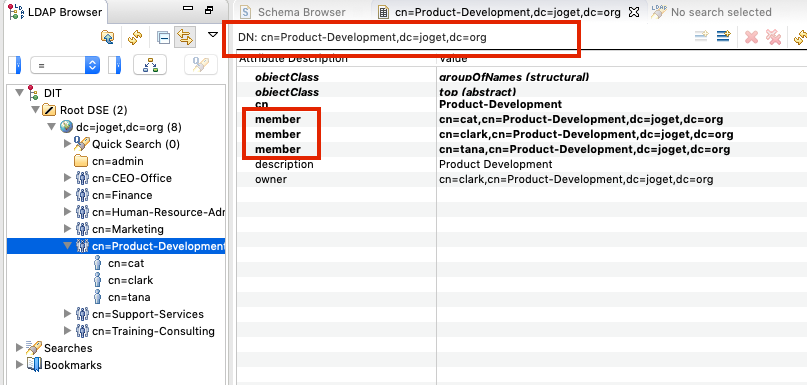

  If the department object itself contains the users that belong to the department, define the attribute name here. For example, in the figure below, we can define "member" as the value here. There's no need to define anything else in "Employment" tab earlier for this case.

• Map To LDAP User Entry Primary Attribute: dn

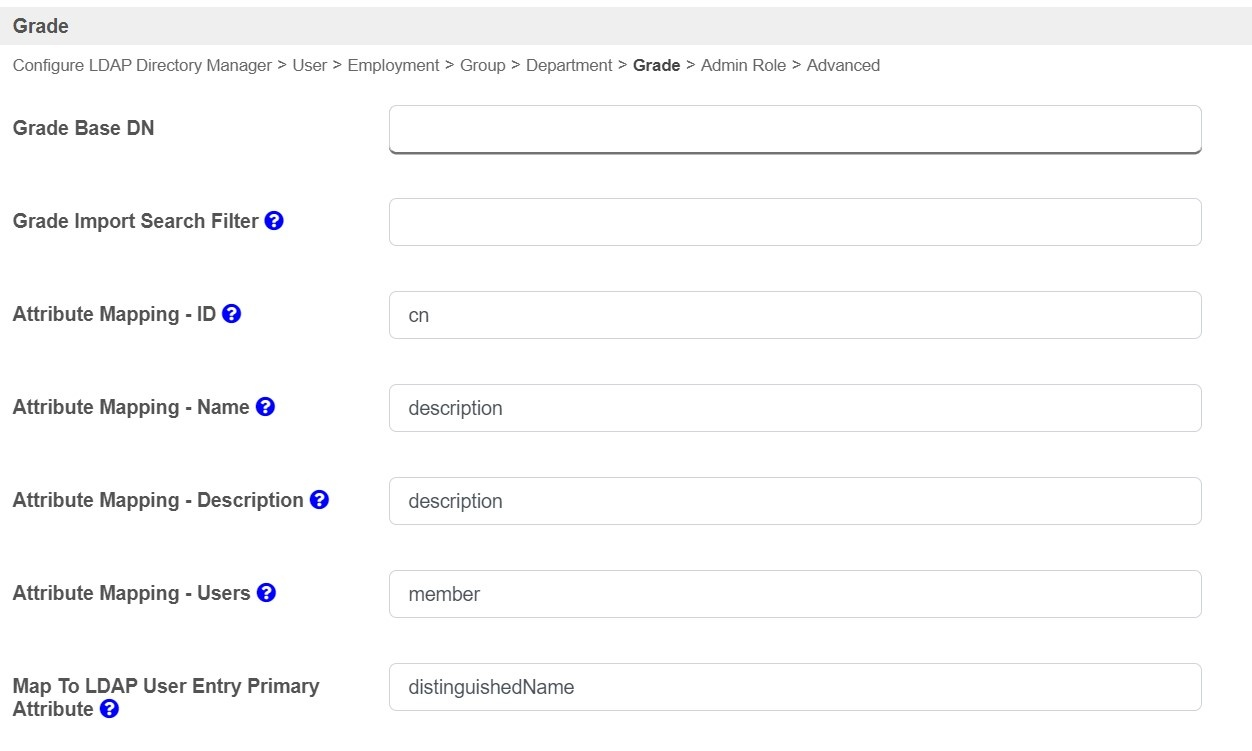

Grade

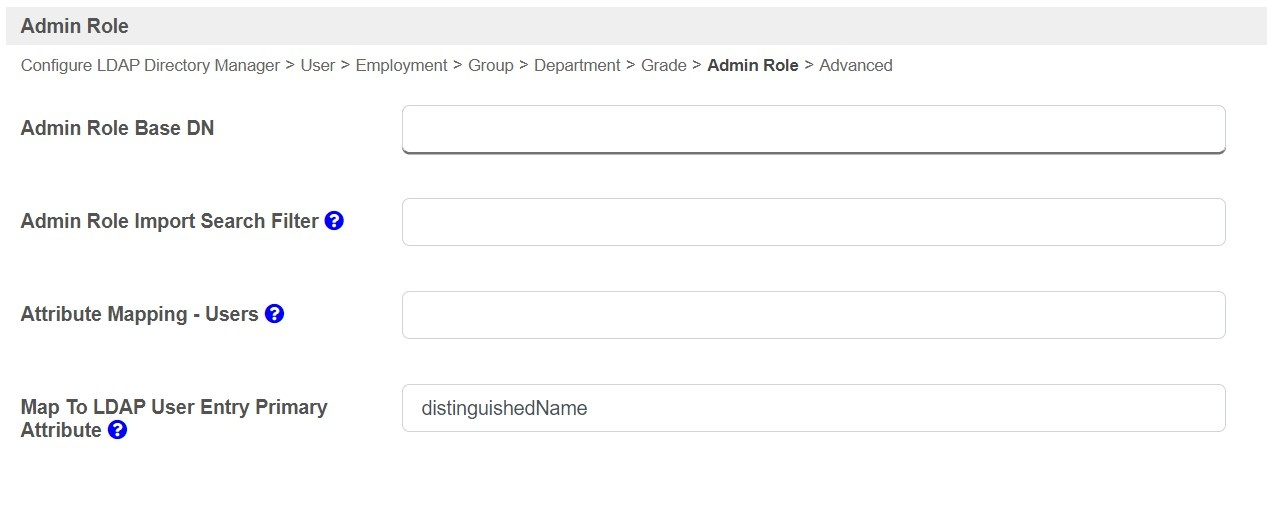

Admin Role

Mapping admin_role from your LDAP is as follows:

1. Create a new organizational unit in your LDAP. For example, the new ou is ou=adminrole,dc=example,dc=org.
2. Create cn entries of usernames who have the admin role in Joget. The usernames must exist in your users' ou=people,dc=example,dc=org property.
3. 3. In Joget LDAP Directory Manager configuration, set the properties accordingly.
   Below is an example but it will differ from everyone else because each organization's LDAP is different:
   • Admin Role Base DN: ou=adminrole,dc=example,dc=org
   • Admin Role Import Search Filter: (objectClass=person)
   • Attribute Mapping - Users: cn
   • Map To LDAP User Entry Primary Attribute: uid ( Set this to the same attribute you used in User
   • Attribute Mapping - Username" [Tab 2])
4. Open incognito mode in your favorite browser and log in to Joget to test the new username with the admin role. Leave your main browser open in Configure LDAP Directory Manager in case you need to make some changes.
5. Go to Setup User and click on your test username to view the user profile information. You should see "Role(s): ROLE_USER, ROLE_ADMIN".
6. Enable Debug Mode to check for errors, below is the correct setting:


   INFO org.joget.plugin.ldap.DirectoryManagerLDAPImpl - URL: ldap://localhost:389__Admin Username: cn=admin,dc=example,dc=org__Root DN: dc=example,dc=org__User Base DN: ou=people,dc=example,dc=org__Group Base DN: __Department Base DN: __Grade Base DN: __Role Admin Base DN: ou=adminrole,dc=example,dc=org


You have to keep trying various configurations until you succeed

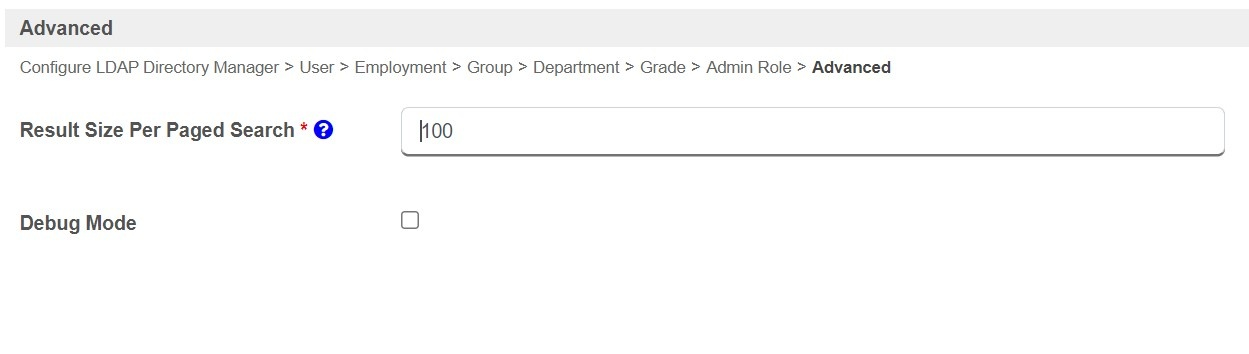

Advanced

Configuring the user import search filter

The following articles might be useful to you in understanding how to filter users based on the groups in LDAP:

• Optimizing Search Performance
• Query to list all users of a certain group
• LDAP - List all users in specific groups
• LDAP query to retrieve members of a group
• Search Filter Syntax

You can use the pipe symbol '|' to denotes 'OR' and include a second (or more) search parameters, for example:

(|(objectClass=person)(objectClass=user))
