JSON API Tool

Introduction

The JSON API Tool allows your AI agent to interact with external systems by making HTTP requests to JSON-based APIs. This is useful for retrieving or sending data to third-party services, internal microservices, or other RESTful endpoints as part of the agent’s workflow.

Get started

How to use it

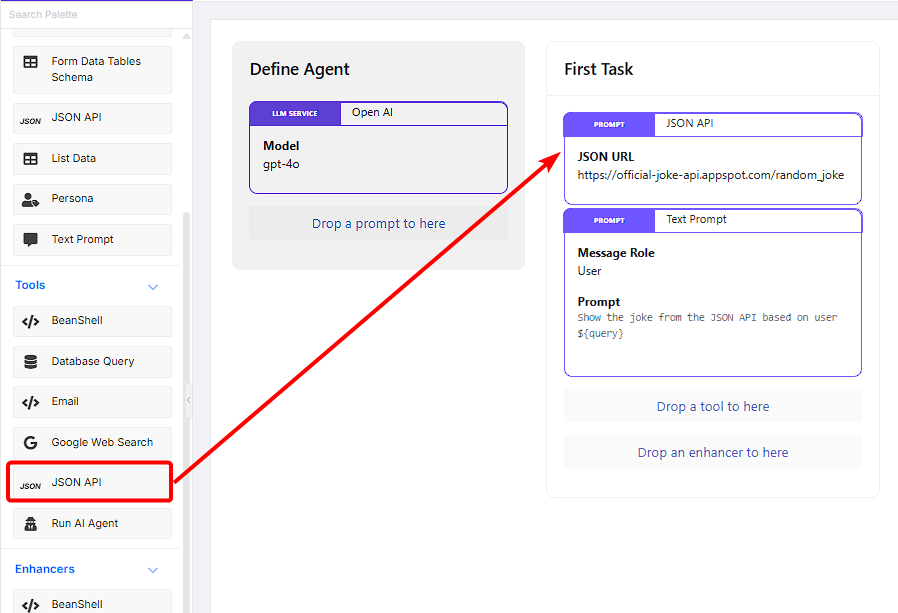

To use the JSON API Element, add the JSON API tools:

1. Locate the JSON API element under the Tools section of the palette.
2. Drag and drop the element into the Drop a tool to here section.

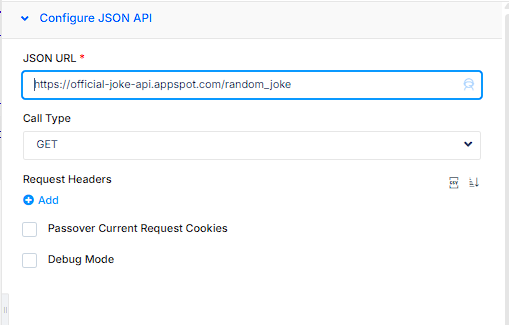

Configure Form Properties

To properly integrate and configure the JSON API, set the following fields:

• Function Name: A unique name to reference this tool function from within the AI agent.
• Function Description: A short, human-readable explanation of what the function does.
• Function Arguments: Define the inputs your API call needs.
  • Data Type:  Expected type (e.g., String, Number, Boolean).
  • Description: Description of what this parameter represents.
  • Is Required? : Indicates if this parameter must be provided when calling the tool.
• JSON URL: The full URL of the API you want to call. You can use hash variables or arguments here.
• Call Type: Select the type of call. Options include:
  • GET
  • POST
  • PUT
  • DELETE
• Request Headers: Add name(s) and value(s) to the request header
  • Name: Name (or Type) of the Request Header.
  • Value: Link or Value of the Request Header.
• Passover Current Request Cookies: Enable this to forward cookies from the current request (useful for authenticated calls).
• Debug Mode:  Enable this to log request and response data for troubleshooting purposes.
