Barcode

Introduction

The Barcode Report Element allows you to generate and display various barcode formats in your Joget application reports. This element is part of Joget's extensible Report Element architecture, allowing end users to easily integrate barcode functionality within their custom reports.

Get started

How to use it

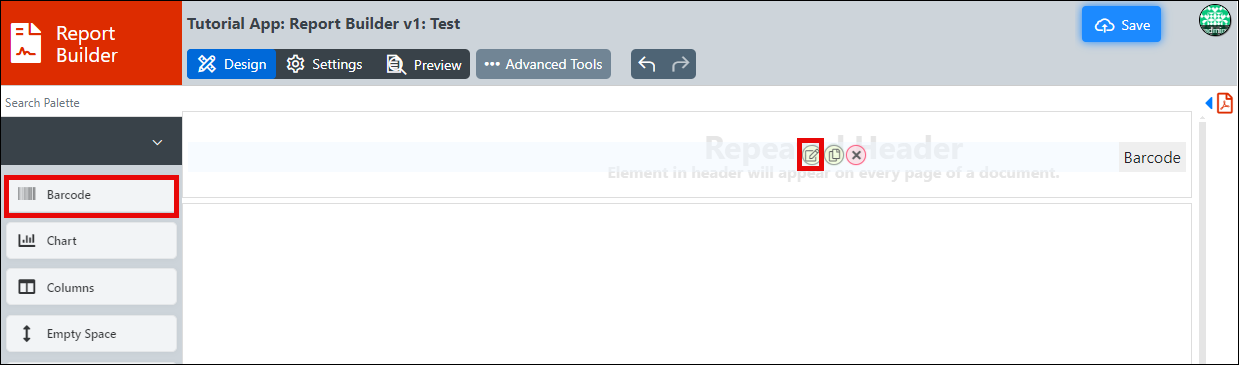

To use the Barcode Report Element:

1. In your report designer, find the Barcode element in the palette.
2. Drag and drop it onto the report canvas.

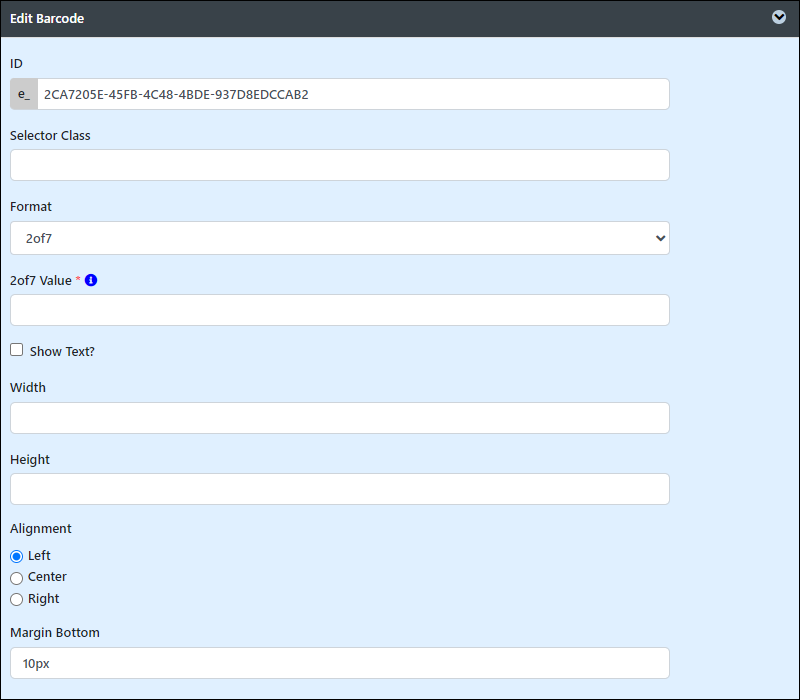

Configure Barcode properties

Fields to configure:

• Format: Select the barcode format from the list.
  • 2of7
  • 3of9
  • Bookland
  • Codebar
  • Code128
  • Code128A
  • Code128B
  • Code128C
  • Code39
  • EAN128
  • EAN13
  • Global Trade Item Number
  • Int2of5
  • Monarch
  • NW7
  • SCC14 Shipping Code
  • PDF417
  • Shipment Identification Number
  • UCCEAN128
  • Std2of5
  • UCECAN128 (00)
  • UPCA
  • USD3
  • USD4
  • UPSS
  • Code39 (Extended)
• (Format) Value: Enter the value to be encoded into the barcode.
• Show Text?: Check this option if you want the barcode value displayed as text below the barcode.
• Check Sum?:
  Note
  This property option will only be displayed if the following options are selected in the Format property:


  • 3of9
  • Code39
  • Int2of5
  • UCCEAN128
  • Std2of5
  • UCECAN128 (00)
  • USD3
  • Code39 (Extended)
• Application Identifier:

  Note
  This property will only be displayed if UCCEAN128 was selected in the Format property.
• Width: Define the width of the barcode.

  Example
  50px or 50%
• Height: Define the height of the barcode (e.g., 50px).

  Example
  50px
• Alignment: Choose the alignment of the barcode.

  • Left
  • Center
  • Right
• Margin Bottom: Set the bottom margin of the barcode.

  Example
  10px
